Jet 107266 - (FA-5S) 5 Ton 15' Lift 575V 3PH Electric Chain Hoist - Heavy Duty

$8,843.99
SKU:
JET107266
UPC:
059629838600
Weight:
599.00 LBS
Availability:
Special Order: Usually Ships in 10-14 Business Days.
Shipping:
$199.00 (Fixed shipping cost)
Shipping:
$199.00 (Fixed shipping cost)
Qty:

Product Details

  • Available in single phase or three phase models and various voltages (specify when ordering)
  • 1/2 ton - 5 ton capacities
  • Chain is heat treated, case hardened low wear chain surpassing ISO Class T
  • All models complete with chain collector bucket
  • Reliable electro-magnetic DC brake engages automatically when power is cut off
  • Two button pendant control automatically returns to OFF mode when either button is released
  • 24 volt pendant control for operator safety in damp or humid conditions
  • Strain relief cable protects electrical connections
  • Top and bottom safety hooks designed to bend slowly to warn of overloads
  • Upper and lower limit switches protect hoist from damage if load or chain stop contacts body
  • Gear train and electrical components completely sealed for use outdoors (cover recommended)
  • Modular construction of motor, gear train, and brake assembly allows for quick and easy maintenance
  • Single phase hoists equipped with automatic overload protection preset to 110% of rated capacity
  • Three phase hoists feature reverse phase protection
  • Meets ASME B30.16, CSA, and OSHA standards
  • Rated Lifting Capacity : 5 T
  • Rated Lifting Capacity : 11,000 lb
  • Standard Lift : 15'
  • Standard Chain Bucket : #5
  • Hoisting Speed : 4.8 FPM
  • Voltage : 575 V
  • Power Source : 3 ph
  • Head Room : 35.43"
  • Motor Power : 2.1 HP
  • Duty Rating : 30 min
  • Power Cable Length : 16'
  • Number of Falls : 5
  • Amperes : 2.6

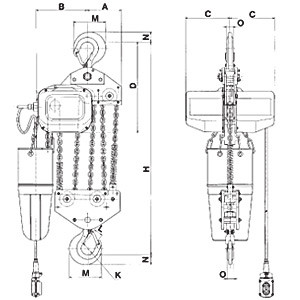

  • A: 7.20"
  • B: 10.75"
  • C: 9.41"
  • D: 19.21"
  • H: 35.43"
  • K: 2.76"
  • L: 21-7/16"
  • M: 7.44"
  • N: 2.24"
  • O: 1.65"
