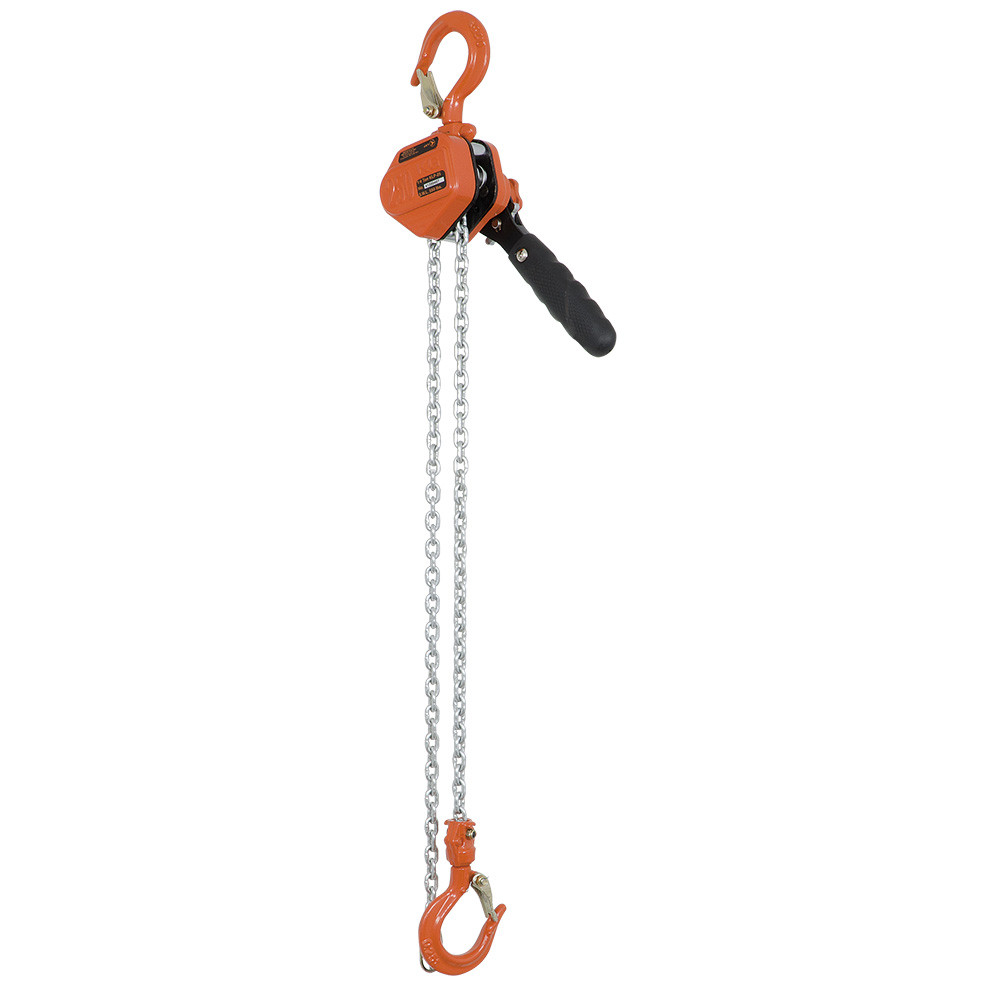

Jet 110803 - (KLP-25-5) 1/4 Ton 5' Lift KLP Series Lever Chain Hoist - Heavy Duty

$319.99
SKU:
JET110803
UPC:
059629879610
Weight:
10.00 LBS
Availability:
Special Order: Usually Ships in 10-14 Business Days.
Shipping:
Calculated at checkout
Shipping:
Calculated at checkout
Qty:

Product Details

  • High impact gear case and brake cover for heavy duty service
  • Grade 100 load chain for greater strength
  • Caged ball bearings on load sprocket for the ultimate in smooth, easy operation
  • Dual pawl Weston style brake features extra heavy pawl springs for reliable and safe operation
  • Exclusive premium grade, non-asbestos brake discs for longest life
  • Top and bottom safety hooks bend to warn of overloads
  • Cast steel safety latches exceed industry standards
  • Deformation indicators on hooks allow accurate measurement for easy maintenance
  • Load tested to 150% of rated capacity (with certificate)
  • Meets ASME B30.21 standards
  • ISO 9001-2008 certified factory
  • NOTE: Custom Lifts are available in any length desired. Ask your local JET distributor for details!
  • Rated Lifting Capacity : 1/4 T
  • Standard Lift : 5'
  • Number of Falls : 1
  • Load Chain Diameter : 3.2 mm
  • Min. Distance Between Hooks : 7.87"
  • Force Req. to Lift Capacity : 44 lb
  • Lever Length : 5.70"
  • A: 7.87"
  • B: 5.70"
  • C: 2.68"
  • D: 3.43"
  • E: 0.83"
