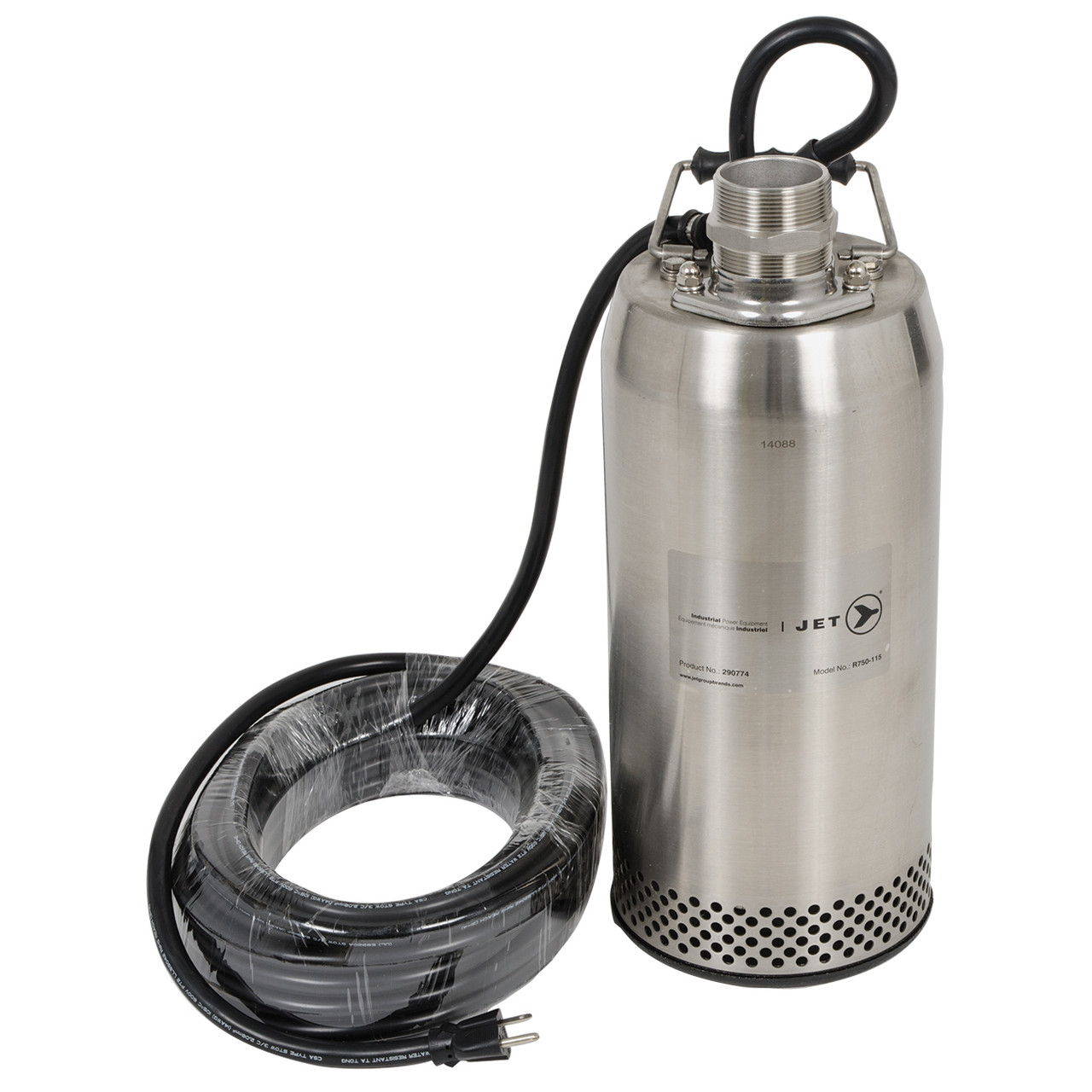

Jet 290774 - (R750-115) 1 HP Submersible Pump

$999.00
SKU:
JET290774
UPC:
059629839294
Weight:
110.00 LBS
Availability:
Discontinued
Shipping:
$199.00 (Fixed shipping cost)
Shipping:
$199.00 (Fixed shipping cost)
Qty:

Product Details

  • Ideal for dewatering constructions sites, mines, circulating fountain water, or for all around use in industrial plants and utilities
  • Top discharge – allows for superior cooling of motor and provides a slim line design
  • Longer power cord – standard 50' power cord
  • 304 Stainless steel motor housing – superior abrasion resistance will not wear out like aluminum motor housings when pumping sandy water
  • Three seal motor protection - motor is protected by double mechanical seals. Lower seal made of silicon carbide and upper seal is made of carbon/ceramic. An additional lip seal has been installed above the impeller, to help prevent abrasives such as dirt, silt or sand, from entering into the seal chamber
  • More motor protection – winding protection and (NEMA) Class F motor insulation allows motor temperature to raise to 230°F, superior to pumps with Class A and B insulation. Automatic switch turns pump motor off if temperature and/or amp draw raises too high. When the motor cools the switch will automatically reset and the pump will turn back on
  • Tough pump construction – hardened cast iron stands up to rough handling and pumping sandy water unlike pumps with soft resin impellers or plastic exterior components
  • Motor Rating : 1 HP
  • Max. Flow : 89 GPM
  • Max. Head : 40.5'
  • Pump Type : Top discharge, dewatering
  • Strainer Opening : 0.25"
  • Discharge Size : 2" NPT-M
  • Max. Submerged Depth : 65'
  • Motor Casing : 304SS
  • Pump : Cast iron volute
  • Impeller : Multi-vane
  • Lip Seals and O-rings : Buna-N
  • Rotor Shaft : 304SS
  • External Hardware : 304SS
  • Qty of Oil in Seal Chamber : 3.7 US oz
  • Motor Speed : 3,450 RPM
  • Motor Insulation : Class F
  • Motor Service Factor : 1.1
  • Voltage : 115 V, 1 ph-60 Hz
  • Current : F.L.A. : 6 A
  • Motor Protection : Thermal and Amp Overload
  • Power Cord : A.W.G. 14/3; 50', STOW
  • Max. Liquid Temperature : 104° F
  • Amperes : 14 A
