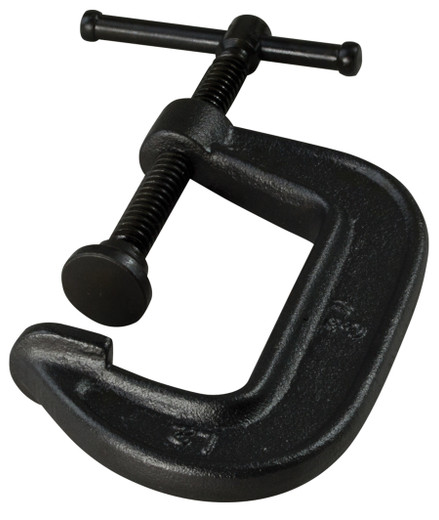

Ductile C-clamp 12 Inch Capacity, 3-5/8 Inch Throat Depth

The BESSEY 540 series c-clamps are made of high tensile, ductile iron casting. This provides excellent strength in a cast frame c-clamp. The black oxide spindle resists corrosion. Tremendous range of capacities; from 2-1/2 to 14 inches. Wide range of applications in metal fabrication, woodworking, auto repair etc…. BESSEY. Simply better.

• Ductile cast iron frames
• Stronger than malleable cast iron frames
• Swiveling pressure pad.
• Hardened, cold drawn steel spindle
• ACME threaded spindle for quick, smooth clamping operations
• Steel sliding T-Bar for use in tight spaces
• Available in 9 sizes
• 540 series ductile alloy c-clamps

Made of high tensile ductile alloy casting which provides excellent strength in a cast clamp. The black oxide spindle resists corrosion. Tremendous range of pressures, capacities and applications. Clamping force offerings from 400 to 40 000 lbs.

Specifications:

• Jaw Width: 1.25 Inches.
• Throat Depth: 3.625 Inches.
• Nominal Clamping Capacity: 12 Inches.
• Holding Capacity: 2850 LBS.
• Clamping Screw Diameter: 0.85 Inches.
• Material Composition: Ductile cast iron, 60,000 PSI
