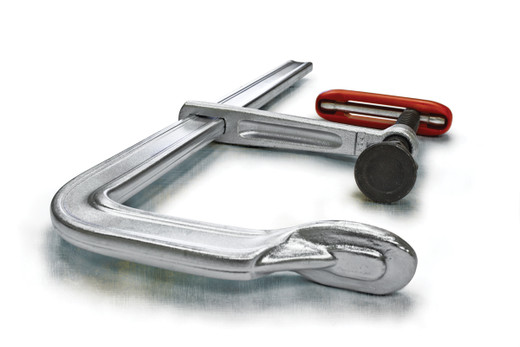

High-Performance Clamp, 60 Inch Capacity, with 5-1/2 Inch Throat Depth

A single sliding arm clamp can do the work of many different sizes of "C" clamp and, can do it nine times faster! The 1800 & 2400 series of bar clamps are regular duty clamps within the Bessey "ALL STEEL" line-up of clamps! These series of clamps feature some key improvements. Each series has a sliding arm design engineered for more efficient force transmission and both have a patented rail profile design for enhanced strength where it matters most. They also have the patented BESSEY MorPad. This contact pad has significant high high-tech features to reduce internal friction and enhance a clamp's service life. Designed & manufactured for years of dependable service, these clamps are made in BESSEY's own German production facilities and, from steel that comes from BESSEY's own European steel mills. BESSEY. Simply better.

• Unique BESSEY MorPad tilts to 35°
• Sliding arm is made of tempered, drop-forged steel
• Clamp rail and fixed jaw are created from a single piece of BESSEY cold drawn steel
• After bending and forming of the fixed jaw the rails are heat treated for maximum strength
• Patented rail profile offers greater stability
• 20% more clamping force per turn of the screw gets you maximum clamping faster
• Does the work of C Clamps … but does it 9x faster
• Replacement arms, spindles and MorPads are available
• B Regular duty all-steel bar clamp (2400S Series)

A top-selling tool for BESSEY®; the 2400S Series has the uncompromising quality and features of the 1800-S Series but, it offers greater throat depth, clamping force and a wider range of clamping capacity. Comes with: Patented rail profile, MorPad, ergonomic BESSEY® grip.

Specifications:

• Jaw Width: 1.5 Inches.
• Throat Depth: 5.5 Inches.
• Nominal Clamping Capacity: 60 Inches.
• Clamping Force: 2800 LBS.
• Rail Dimensions: 1-11/32 Inches x 33/64 Inches.
• Clamping Screw Diameter: 0.78 Inches.
• Maximum Torque Input: 29.5 FT/LBS.
• Handle Length: 4.75 Inches.
• Material Composition: Steel
• Color / Finish: Zinc plated steel
