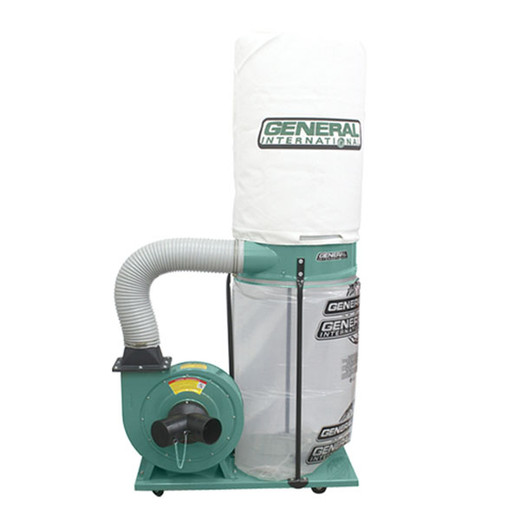

Product Details
- Totally enclosed, fan cooled, permanently lubricated motor. Designed for industrial applications with a continuous duty rating.
- Heavy-duty construction,mounted on four swivel casters, allowing total mobility and stability.
- Safety switch with key. Unit cannot be started when key is removed from the switch.
- Precision spin-balanced impeller for smooth operation and minimal noise.
- Reusable clear plastic collector bag for improved dust collection efficiency.
- 5” heavy-duty PVC hose between body of fan and collector.
- Collector body mounted on 3 heavy-duty rods.
- Equipped with 2 micron filter bag. (Not included on “CF” canister filter model).
- Quick-release bag clamps with metal straps.
- Intake screen prevents larger pieces from jamming in the impeller.
| Inlet diameter | (1) 6” (152 mm) |
| (or 2) 4" (102 mm) with Y fitting inlet | |
| Airflow capacity | 1250 cfm |
| Blower wheel diameter | 12 3/4” (323 mm) |
| Sound rating | 80 to 85 dB |
| Bag diameter | 20” (508 mm) |
| Bag capacity | 42 gallon (190.9 L) |
| Static pressure (without bag) | 9” of water |
| Overall dimensions (l x w x h) | 38” x 31 1/2” x 76” (970 x 800 x 1930 mm) - 10-105A |
| 38” x 31 1/2” x 71” (768 x 525 x 1800 mm) - 10-105ACF | |
| Motor | 1 1/2 HP, 110/220 V, 1 Ph, 14/7 A |
| Weight | 106 lbs (48 kg) - 10-105M1 |
