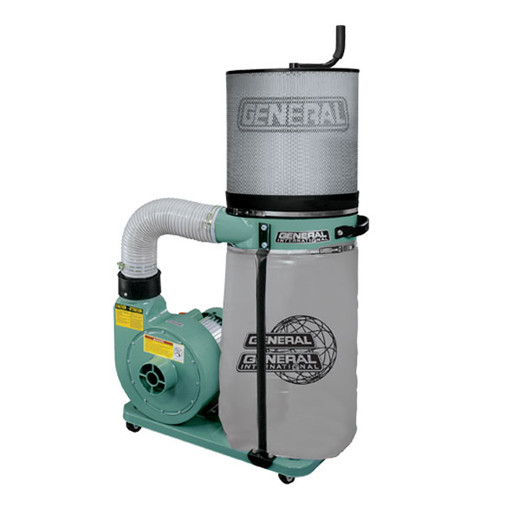

Product Details
- Totally enclosed, fan cooled, permanently lubricated motor. Designed for industrial applications with a continuous duty rating.
- Heavy-duty construction, mounted on four swivel casters, allowing total mobility and stability.
- Safety switch with key. Unit cannot be started when key is removed from the switch.
- Precision aluminum spin-balanced impeller for smooth operation and minimal noise.
- Reusable clear plastic collector bag for improved dust collection efficiency.
- 5” heavy-duty PVC hose between body of fan and collector.
- Collector body mounted on 3 heavy-duty support rods.
- Washable with 2 micron filter bag (not included on “CF” canister filter model).
- Quick-release bag clamps with metal straps.
- Intake screen prevents larger pieces from jamming in the impeller.
| Inlet diameter | (1) 4” (102 mm) |
| Airflow capacity | 700 cfm |
| Blower wheel diameter | 10” (254 mm) |
| Sound rating | 75 to 80 dB |
| Bag diameter | 15” (381 mm) |
| Bag capacity | 20 gal. (90.9 L) |
| Static pressure (without bag) | 6 5/32” of water |
| Overall dimensions (l x w x h) | 29 1/8” x 16 1/2” x 56 1/2” (740 x 420 x 1430 mm) - 10-005A |
| 29 1/8” x 16 1/2” x 61” (740 x 420 x 1550 mm) - 10-005AS | |
| 29 1/8” x 16 1/2” x 49 1/4” (740 x 420 x 1250 mm) - 10-005ASCF | |
| Motor | 1 HP, 110 V, 1 Ph, 7 A |
| Weight | 72 lbs (33 kg) - 10-005SCFM1 |
