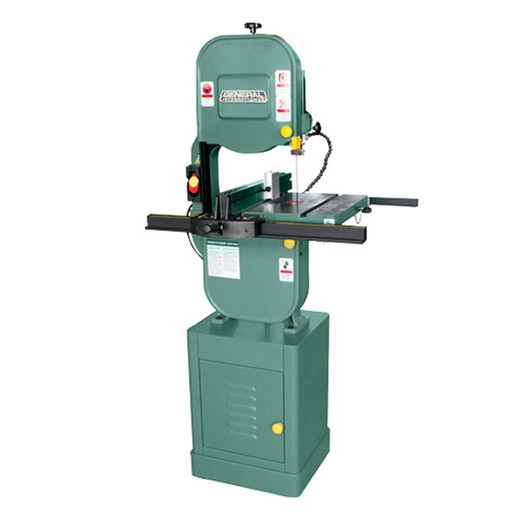

General - 14" wood cutting bandsaw - 90-125M1

$1,199.99

SKU:

GEN90-125M1

UPC:

626709000000

Weight:

999.00 LBS

Availability:

Discontinued

Current Stock:

Out of Stock

Call us: 1-800-401-7980 Shop in store

Product Details

Deluxe Excalibur bandsaw rip fence system with curved resaw guide block.
Cast-iron frame & precision-balanced aluminum wheels with
replaceable rubber tires.
Closed stand model features a rigid one-piece welded stand.
Precision metal miter gauge with handle.
Deluxe blade guide bearings included.
Two cutting speeds for excellent results in either hard or soft
woods.
Hinged door and easily accessible blade tensioning knob,
for fast blade changes or adjustments.
Quick release blade tension lever.

Wheel size	13 7/8” (353 mm)
Wheel speeds (2)	495 & 825 rpm
Blade speeds (2)	1800 & 3000 lin. fpm (549 & 915 lin. mpm)
Maximum blade width	3/4” (19 mm)
Minimum blade width	1/8” (3.2 mm)
Blade length	93 1/2” (2375 mm)
Table size	16” x 16” (406 x 406 mm)
Table tilt	0° to 45° (right) / 0° to 10° (left)
Table height	42 3/4” (1086 mm)
Maximum width of cut	13 1/2” (343 mm)
Maximum height of cut	6” (150 mm) - up to 12” with optional riser kit (#90-130)
Dust outlet	4” (102 mm)
Base dimensions (l x w)	18 5/8” x 15 3/4” (460 x 400 mm)
Motor (pre-wired 120 V)	1 HP, 120/240 V, 1 Ph,10/5 A
Weight	224 lbs (102 kg)

Deluxe rip fence system

3/8" blade included.

► Deluxe 2-position extruded aluminium rip fence.		► Quick-connect motor-to-switch for easy set-up.

► Blower device.
