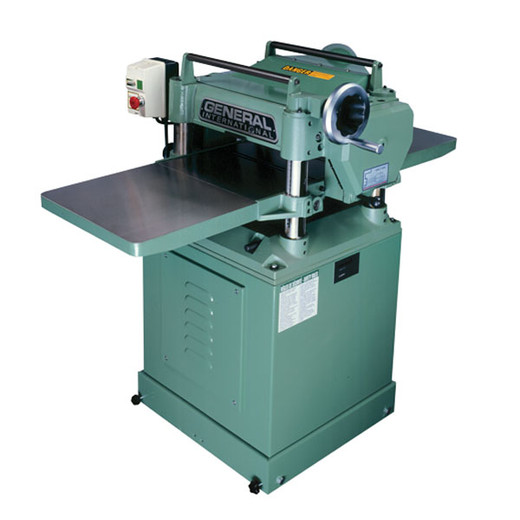

General - 15" single surface planer - 30-125M1
$2,899.99
$3,479.99
(You save $580.00)
Product Details
- Large cast-iron extension wings.
- Base is equipped with four lockable wheels to allow easy movement around the workshop.
- Heavy-duty enclosed stand protects motor from dust and
provides a stable work station. - Heavy-duty cast-iron frame reduces vibration for more
precise planing. - Four-post design provides added stability to keep the table aligned with the cutter head.
- 5″ offset dust chute for efficient dust collection.
- Knife setting gauge included (30-125CE only).
- Triple V-belt drive for greater power.
- Magnetic safety switch for added safety.
- Two convenient 15″ top mounted return rollers allow smooth stock handling for consecutive planing.
- The head of the machine is equipped with anti-kickback
fingers. - Two lock-knobs secure the table for greater precision.
- Polyurethane outfeed rollers.
| Table area with extensions | 15’’ x 48” (380 x 1217 mm) |
| Maximum planing width | 14 7/8” (378 mm) |
| Maximum thickness of stock | 6” (152 mm) |
| Minimum thickness of stock | 3⁄8” (10 mm) |
| Minimum length of stock | 6 1/2” (165 mm) |
| Maximum depth of cut | 1/8” (3 mm) |
| Cutter head diameter | 2 7/8” (73 mm) |
| Cutter head speed | 5000 rpm |
| Feed speeds (2) | 16 & 20 fpm (4.87 & 6.1 mpm) |
| Cuts per inch | 78.13 at 16 fpm & 62.5 at 20 fpm |
| Number of knives / Inserts | (double edge) 3 - 30-125CE / 42 - 30125HC |
| Dust outlet | 5" (127 mm) |
| Motor | 3 HP, 240 V, 1 Ph, 15 A |
| Weight | 587 lbs (267 kg) |
