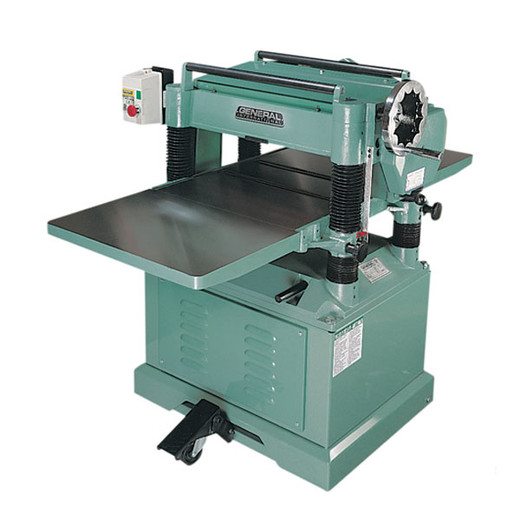

Product Details
- Large cast-iron extension wings.
- Built-in mobile base with one-step lock-pedal.
- Heavy-duty enclosed stand protects motor from dust and
wood chips. - Positive gear design for quick and accurate table
adjustments. - Heavy-duty cast-iron base, table, and head to eliminate all
vibrations. - Built-in table rollers reduce friction.
- Large handwheel quickly adjusts table height.
- Magnetic safety switch for added safety.
- 5” offset dust chute for efficient dust collection.
- Convenient top mounted return rollers allow smooth stock handling for consecutive planing / multiple passes.
- Comes with knife setting gauge (30-300 only).
- Equipped with three drive belts.
| Table size | 25 9/16” x 20” (650 x 508 mm) |
| Extension wing sizes | (2) 15” x 21 1/4” (380 x 538 mm) |
| Total surface of work table | 55” x 20” (1437 x 506 mm) |
| Maximum planing width | 20” (508 mm) |
| Maximum thickness of stock | 8” (202 mm) |
| Minimum thickness of stock | 1/8” (3 mm) |
| Minimum length of stock | 6 3/4” (172 mm) |
| Maximum depth of cut | 1/8” (3 mm) |
| Cutter head diameter | 3 1/8” (80 mm) |
| Cutter head speed | 5000 rpm |
| Feed rates | (2) 16 & 20 fpm (4.87 & 6.1 mpm) |
| Cuts per inch (not applicable for HC model) | 78.13 at 16 fpm & 62.5 at 20 fpm |
| Number of knives / Inserts | 3 - 30-300 / 58 - 30-300HC |
| Dust Outlet | 5" (127 mm) |
| Motor | 5 HP, 220 V, 1 Ph, 23.2 A |
| Weight | 860 lbs (390 kg) - 30-300 |
