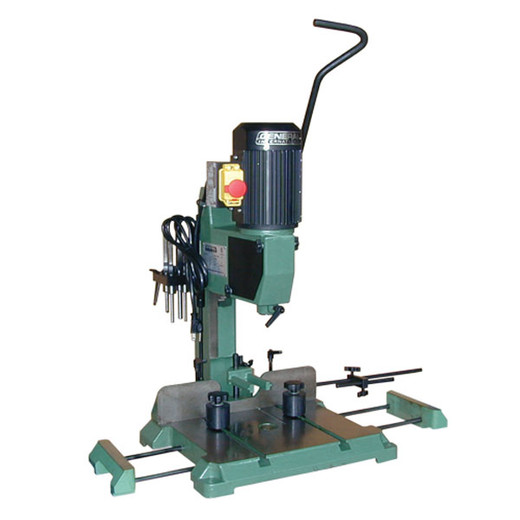

General - 5/8" hollow chisel mortiser - 75-040M1

$499.99

SKU:

GEN75-040M1

UPC:

626709000000

Weight:

999.00 LBS

Availability:

Discontined

Shipping:

$120.00 (Fixed shipping cost)

Shipping:

$120.00 (Fixed shipping cost)

Current Stock:

Out of Stock

Qty:

Call us: 1-800-401-7980 Shop in store

Product Details

Large feed handle (left or right mount) with multi-position arm for better leverage and increased feed control.
Heavy-duty cast-iron head, column and base built for steady,
vibration-free performance.
Head slides on precision machined cast-iron dovetail ways - stroke is controlled by a gas head-cylinder for smooth operation.
Dual depth stop for complete control of both down stroke
depth and upstroke travel.
Includes an adjustable workpiece stop and hold-down.
Totally enclosed fan cooled motor with start capacitor for smooth start-up and longer running life.
Dust protected switch with large mushroom style stop button
and lock-out safety feature to prevent unintentional start-up.
Includes adapter bushings to accommodate both 5/8″ and 3/4″
sized chisel shanks.
Large table with telescopic extensions for enhanced workpiece support.
Non-marking rubber table rollers hold the workpiece firmly to the fence.

Chisel capacity	1/4” to 5/8” (6 to 16 mm)
Maximum chisel stroke	5” (127 mm)
Distance from fence to center chisel	4” (101 mm)
Distance from ø chisel to table (chisel 1/4”)	5” (127 mm)
Chuck capacity	1/2” (13 mm)
Table size	14 1/4" x 11 1/8" (362 x 283 mm)
Table with extensions	35" x 11 1/8" (890 x 283 mm)
Base size	15 9/16" x 17 1/8" (396 x 435 mm)
Fence size	113 15/16" x 2 15/16" (355 mm x 75 mm)
Overall height	24 3/8" (620 mm)
Spindle speed	1720 rpm
Motor	1/2 HP, 110 V, 1 Ph, 6 A
Weight	99 lbs (45 kg)

Mortising chisel & bit set

► Large table with telescopic extensions.		►Convenient tool holder.


► Left or right mount feed handle.
