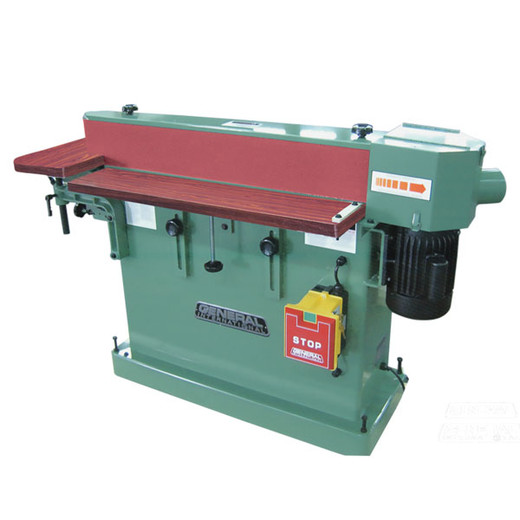

General - 6" x 108" vertical edge belt sander - 15-010M1

$2,349.99
SKU:
GEN15-010M1
UPC:
626708000000
Weight:
999.00 LBS
Availability:
Discontined
Shipping:
$350.00 (Fixed shipping cost)
Shipping:
$350.00 (Fixed shipping cost)
Current Stock:
Out of Stock
Qty:

Product Details

  • Magnetic 2-step safety switch to prevent unintentional start-up is equipped with an extralarge easy access stop panel and a lock-out key to prevent unauthorized use.
  • Tables can be adjusted up or down for full belt use.
  • Front table can be inclined left or right.
  • Innovative hinged dust hood accommodates oversized stock.
  • Easy adjustment of abrasive belt tension with one knob only.
  • Graphite backing reduces belt friction for longer belt life.
  • Single knob tracking control.
  • Auxiliary table allows curved sanding.
  • Heavy steel base ensures a solid stable.
  • platform while sanding.
  • Dynamically balanced 7″ rubber drive roller and crowned 3″ idler roller to ensure solid belt tracking.



Belt size 6" x 108" (152 x 2743 mm)
Belt speed 3150 lin. fpm
Front table size (l x w) 7 3/4” x 37" (197 x 940 mm)
Auxiliary table size (l x w) 11 3/4” x 19" (299 x 483 mm)
Dust outlet 4” (102 mm)
Base dimensions (l x w) 42” x 16 1/2” (1067 x 419 mm)
Overall dimensions (l x w x h) 62″ x 20 1/2″ x 41″ (1575 x 521 x 1041 mm)
Motor M1 2 HP, 220 V, 1 Ph, 14 A
Motor M2 2 HP, 220 V, 3 Ph, 6 A
Motor M3 2 HP, 600 V, 3 Ph, 2.5 A
Weight 462 lbs (210 kg)
