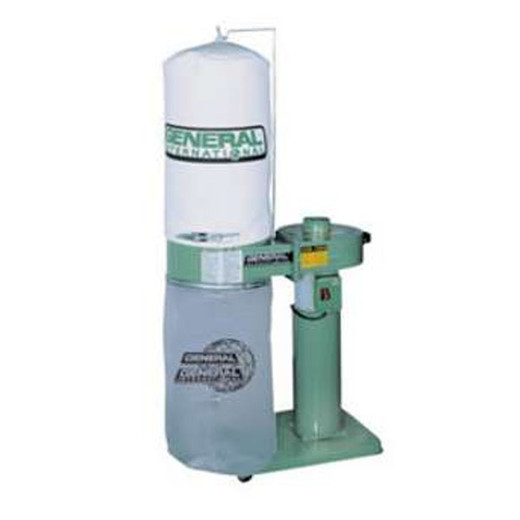

Product Details
- Totally enclosed, fan cooled, permanently lubricated motor. Designed for industrial applications with a continuous duty rating.
- Heavy-duty construction,mounted on four swivel casters, allowing total mobility and stability.
- Safety switch with key. Unit cannot be started when key is removed from the switch.
- Precision spin-balanced impeller for smooth operation and minimal noise.
- Reusable clear plastic collector bag for improved dust collection efficiency.
- Washable, extra fine 2 micron filter bag.
- Quick-release bag clamps with metal straps.
- Intake screen prevents larger pieces from jamming in the impeller.
| Inlet diameter (1) | 4” (102 mm) |
| Airflow capacity | 752 CFM |
| Blower wheel diameter | 9” (229 mm) |
| Sound rating | 75 TO 80 dB |
| Bag diameter | 15” (381 mm) |
| Bag capacity | 20 GAL (90.9 L) |
| Static pressure (without bag) | 5” OF WATER |
| Motor | 1 HP, 110 V, 1 Ph, 7 A |
| Overall dimensions | (L x W x H) 30 3/4” x 15” x 60 1/4” (780 x 380 x 1530 mm) |
| Weight | 76 LBS (34.5 Kg) |
