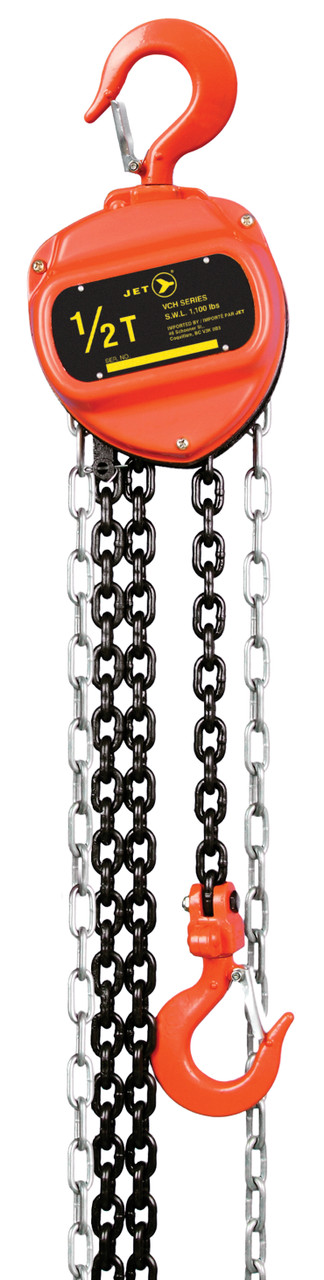

- Jet 101006 - (VCH-0520) 1/2 Ton 20' Lift VCH Series Chain Hoist
Product Details
- Triple spur geared for efficient operation
- Hardened steel roller bearings support load sheave for easy operation
- Dual pawl Weston style brake for safe reliable operation
- Exclusive premium grade, non-asbestos brake discs for longest life
- Grade 80 load chain
- Top and bottom safety hooks bend slowly to warn of overloads
- Load tested to 150% of rated capacity with certificate
- Meets ASME B30.16 standards
- ISO 9001-2000 certified factory
- NOTE: Custom Lifts are available in any length desired. Ask your local JET distributor for details!
- Rated Lifting Capacity : 1/2 T
- Rated Lifting Capacity : 1,100 lb
- Standard Lift : 20'
- Head Room : 11-1/32"
- Number of Falls : 1
- Load Chain Diameter : 6.0 mm
- Force Req. to Lift Capacity : 49 lb
- Length of Hand Chain Pulled to Lift Load 1' : 27'
- A: 4-15/16"
- B: 4-13/16"
- C: 35 mm
- G: 27 mm
- H: 11-1/32"
