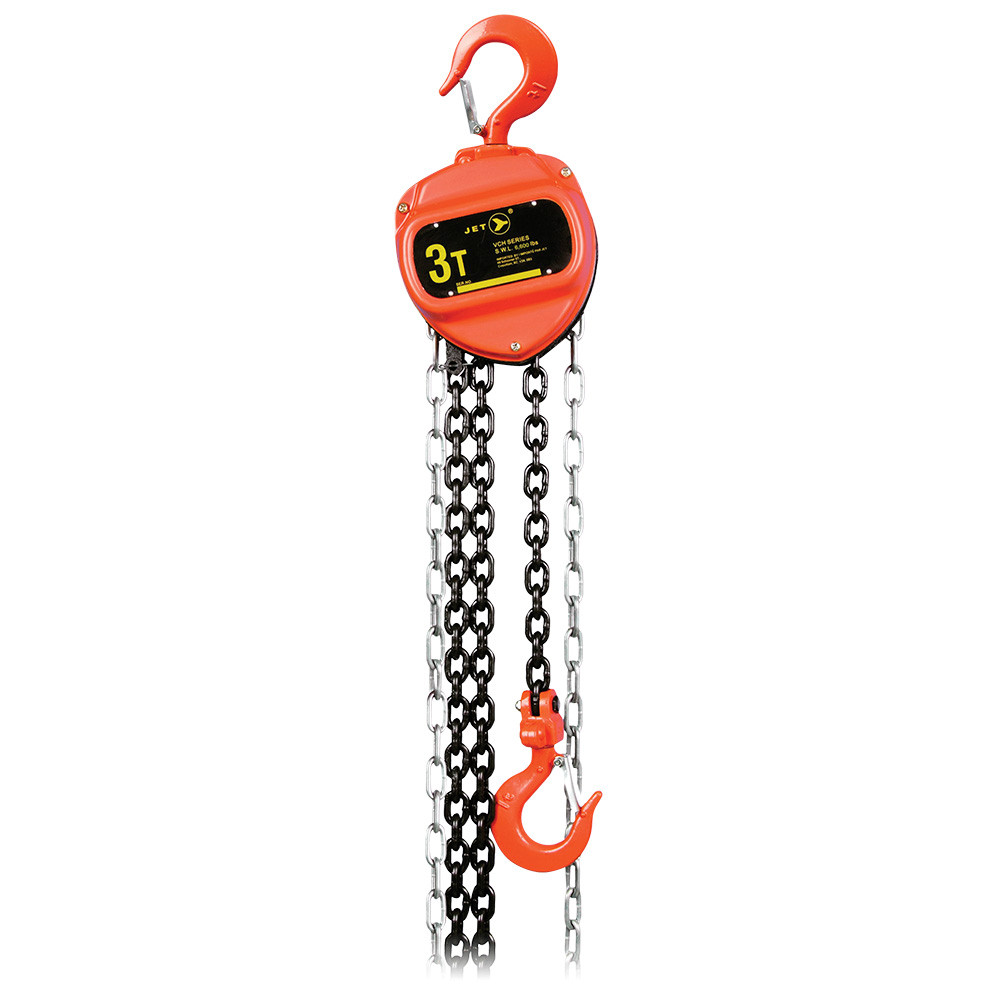

- Jet 101046 - (VCH-3020) 3 Ton 20' Lift VCH Series Chain Hoist
Product Details
- Triple spur geared for efficient operation
- Hardened steel roller bearings support load sheave for easy operation
- Dual pawl Weston style brake for safe reliable operation
- Exclusive premium grade, non-asbestos brake discs for longest life
- Grade 80 load chain
- Top and bottom safety hooks bend slowly to warn of overloads
- Load tested to 150% of rated capacity with certificate
- Meets ASME B30.16 standards
- ISO 9001-2000 certified factory
- NOTE: Custom Lifts are available in any length desired. Ask your local JET distributor for details!
- Rated Lifting Capacity : 3 T
- Rated Lifting Capacity : 6,600 lb
- Standard Lift : 20'
- Head Room : 20-15/32"
- Number of Falls : 2
- Load Chain Diameter : 8.0 mm
- Force Req. to Lift Capacity : 88 lb
- Length of Hand Chain Pulled to Lift Load 1' : 53'
- A: 7-13/64"
- B: 6-7/32"
- C: 2-29/64"
- G: 1-23/32"
- H: 20-15/32"
