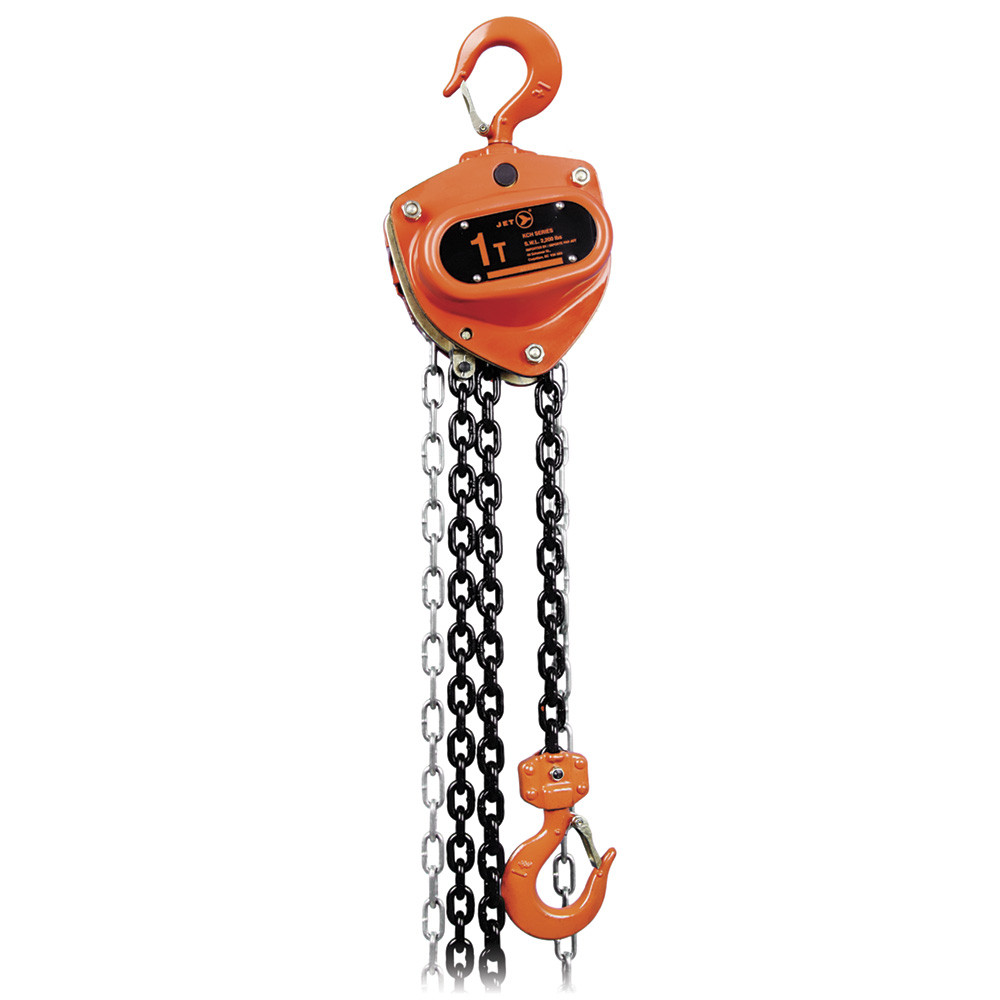

- Jet 101116 - (KCH-1020) 1 Ton 20' Lift KCH Series Chain Hoist - Heavy Duty
Product Details
- Triple spur geared for efficient operation
- Maintenance free sealed bearings reduce operator effort
- Dual pawl Weston style brake with extra heavy pawl springs for safe reliable operation
- Extra thick ratchet gear protects brake disc from contamination
- Exclusive premium grade, non-asbestos brake discs for longest life
- Grade 100 load chain for greater strength
- Top and bottom safety hooks bend slowly to warn of overloads
- Cast safety latches exceed industry standards
- Specialized finish on key internal parts for superior corrosion resistance
- Load tested to 150% of rated capacity with certificate
- Meets ASME B30.16 standards
- ISO 9001-2000 certified factory
- NOTE: Custom Lifts are available in any length desired. Ask your local JET distributor for details!
- Rated Lifting Capacity : 1 T
- Rated Lifting Capacity : 2,200 lb
- Standard Lift : 20'
- Head Room : 11-5/8"
- Number of Falls : 1
- Load Chain Diameter : 6.3 mm
- Force Req. to Lift Capacity : 64 lb
- Length of Hand Chain Pulled to Lift Load 1' : 43'
- A: 6-5/16"
- B: 6-5/16"
- C: 2"
- D: 1-1/8"
- E: 33 mm
- F: 40 mm
- G: 45 mm
- H: 11-5/8"
