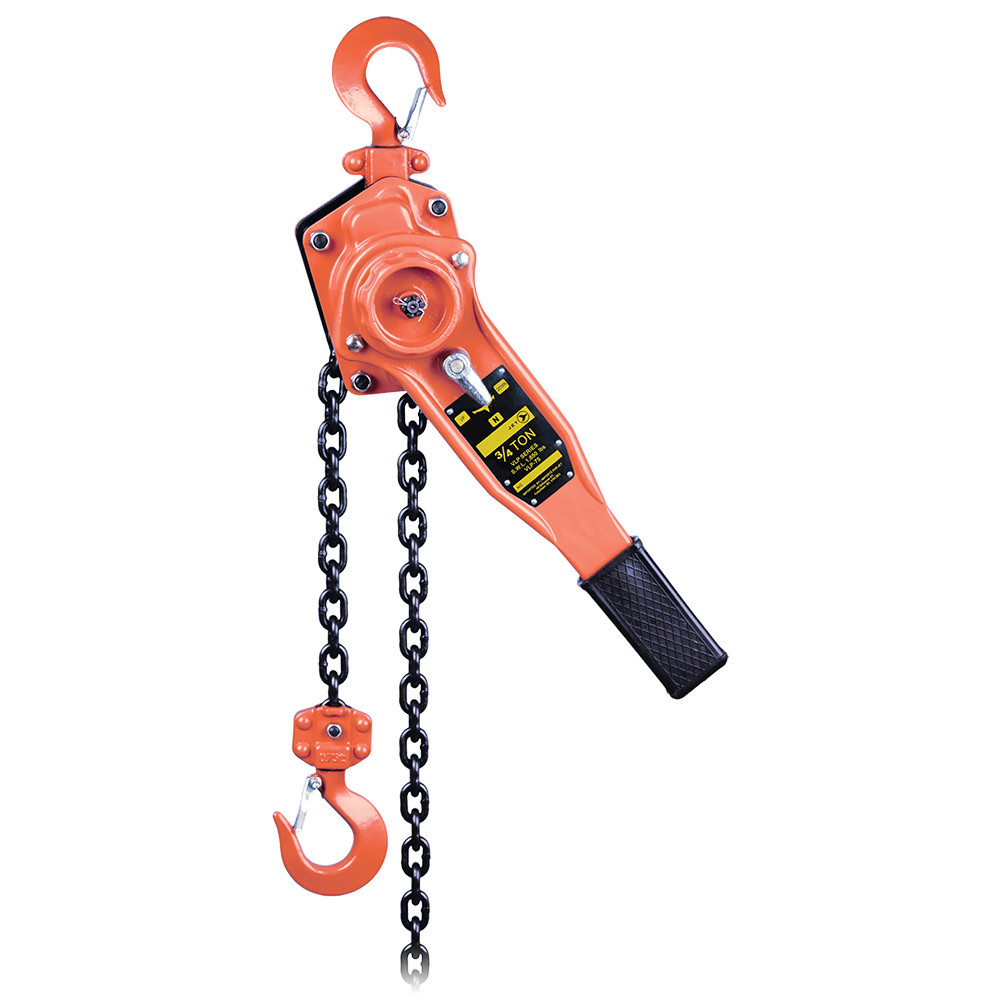

- Jet 110302 - (VLP-75) 3/4 Ton 5' Lift VLP Series Lever Chain Hoist
Product Details
- Cold formed stamped steel housings resist impact
- Grade 80 load chain
- Hardened steel roller bearings support load for easier operation
- Dual pawl Weston style brake for reliable and safe operation
- Exclusive premium grade, non-asbestos brake discs for longest life
- Top and bottom safety hooks bend to warn of overloads
- Deformation indicators on hooks allow accurate measurement for easy maintenance
- Load tested to 150% of rated capacity with certificate
- Meets ASME B30.21 standards
- ISO 9001-2000 certified factory
- NOTE: Custom Lifts are available in any length desired. Ask your local JET distributor for details!
- Rated Lifting Capacity : 3/4 T
- Standard Lift : 5'
- Number of Falls : 1
- Load Chain Diameter : 6.0 mm
- Min. Distance Between Hooks : 12"
- Force Req. to Lift Capacity : 31 lb
- Lever Length : 12"
- A: 5-7/8"
- B: 3-1/2"
- C: 37.5 mm
- D: 12"
- H: 12-3/4"
