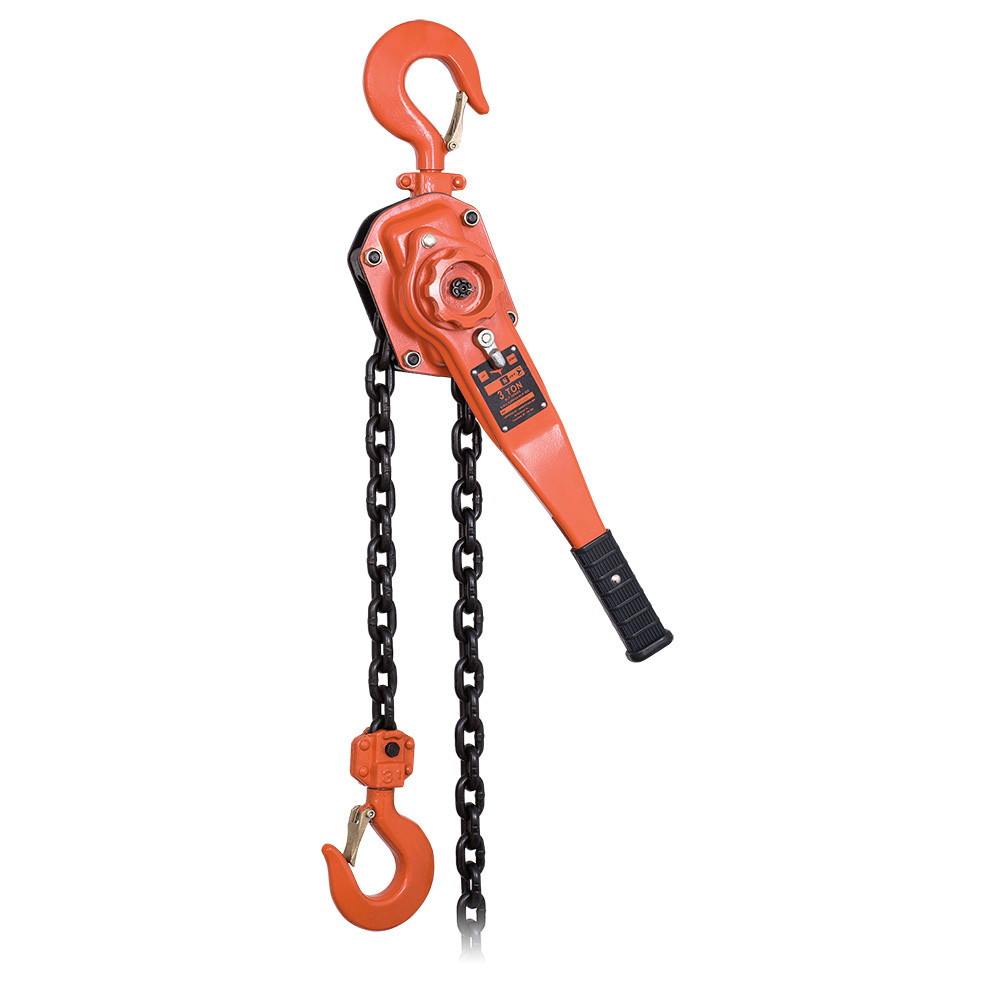

- Jet 110404 - (KLP-300-5) 3 Ton 5' Lift KLP Series Lever Chain Hoist - Heavy Duty
Product Details
- High impact gear case and brake cover for heavy duty service
- Grade 100 load chain for greater strength
- Caged ball bearings on load sprocket for the ultimate in smooth, easy operation
- Dual pawl Weston style brake features extra heavy pawl springs for reliable and safe operation
- Exclusive premium grade, non-asbestos brake discs for longest life
- Top and bottom safety hooks bend to warn of overloads
- Cast steel safety latches exceed industry standards
- Deformation indicators on hooks allow accurate measurement for easy maintenance
- Load tested to 150% of rated capacity (with certificate)
- Meets ASME B30.21 standards
- ISO 9001-2008 certified factory
- NOTE: Custom Lifts are available in any length desired. Ask your local JET distributor for details!
- Rated Lifting Capacity : 3 T
- Standard Lift : 5'
- Number of Falls : 1
- Load Chain Diameter : 10.0 mm
- Min. Distance Between Hooks : 16-1/2"
- Force Req. to Lift Capacity : 68 lb
- Lever Length : 16-1/4"
- A: 7-11/16"
- B: 4-1/2"
- C: 62.5 mm
- D: 16-1/4"
- G: 43.5 mm
- H: 16-1/2"
