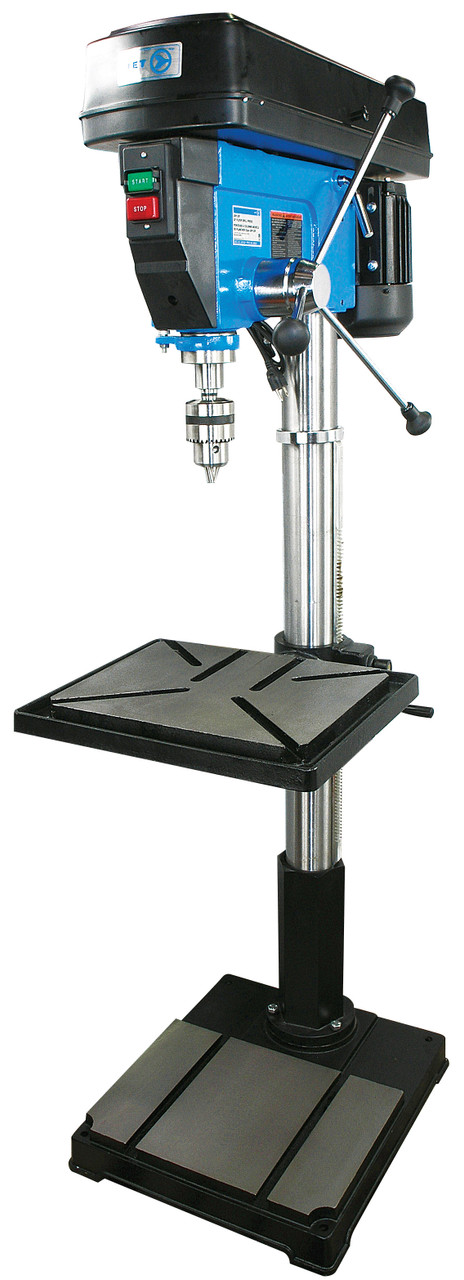

- Jet 200357 - (JDP-22F) 22" 1-1/2 HP 12 Speed Drill Press
Product Details
- Powerful 1-1/2 horse power motor
- Full 22" swing for easy drilling of larger work pieces
- 12 speed capability allows for a broad assortment of drilling applications
- Safety on/off switch with removable lock key
- Fully hinged belt and pulley cover and quick adjust motor mount permit fast changes of spindle speed
- Worktable with quick release clamp rotates and tilts to 45° right and left
- Slots in worktable and base permit easy clamping of the work piece
- Positive depth setting mechanism uses a threaded rod and two lock nuts for accuracy
- Built-in work lamp with separate switch (use outdoor rated bulb, not included) Standard Equipment: Drill chuck and key
- Swing : 22"
- Type: Floor Model
- Chuck Size : 3/4"
- Drilling Capacity : 1-1/4"
- Spindle Travel : 4-1/2"
- Spindle Distance to Base : 49"
- Max. Spindle Distance to Table : 29"
- Table Diameter : 16-1/2" x 18-3/4"
- Table Tilt (Right and Left) : 0 45°
- Spindle Taper : MT3
- Column Diameter : 3-5/8"
- Number of Spindle Speeds : 12
- Range of Spindle Speeds : 180 4,200 RPM
- Overall Height : 69-1/4"
- Base Size : 19-5/8" x 22-1/2"
- Motor : 1.5 HP, 1 ph, 115/230 V, 10.0/5.0 A, Pre-wired 115 V
