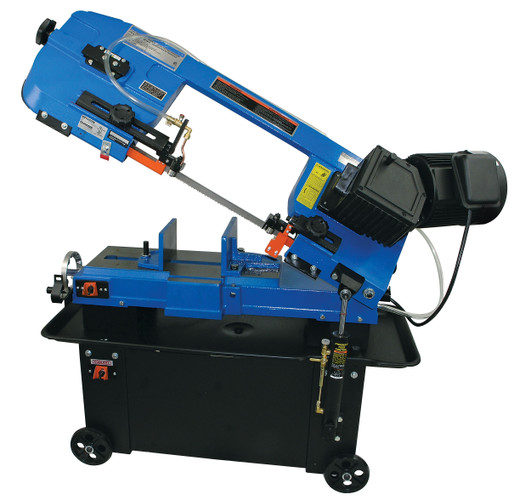

- Jet 222332 - (JHVG-712) 7" x 12" Horizontal Bandsaw
Product Details
- Heavy duty cast iron construction for accuracy and durability
- Three speed gear box replaces less efficient belt drive systems found on most comparable machines
- Horizontal cutting feed rate controlled by a fully adjustable hydraulic ram
- Coolant delivery system provides fast cutting while extending the service life of the blade and the saw
- Quiet cutting, rated within 70 decibels
- Easy cleaning with removable filter screen
- Automatic shut-off system stops the machine when the stock is cut through
- Quick action vise adjusts from 90° to 45° for mitre cutting
- Cuts up to 7" round stock and up to 7" by 12" rectangular stock
- Full 1 HP, single phase motor
- Complete with four wheels for mobility
- Standard Equipment: blade; coolant system; material stop system; 4 wheels; vertical work table; enclosed stand; blade chip brush; quick action vise
- Capacity 90° : 7" (circle), 7" x 12" (rectangular shape)
- Capacity 45° : 4" (circle), 5" x 6" (rectangular shape)
- Throat Depth : 7"
- Blade : 3/4" x 0.032" x 93", 5/8 TPI
- Vertical Work Table : 9-1/2" x 10"
- Vise Tilts : 45°
- Blade Speeds : 125 SFPM, 215 SFPM, 270 SFPM
- Floor Space Required : 49-1/2" x 17-1/2"
- Motor : 1 HP, 1 ph, 115/230 V, Pre-wired 115 V, 1,720 RPM
- Shipping Dimensions : 51" x 18" x 40"
