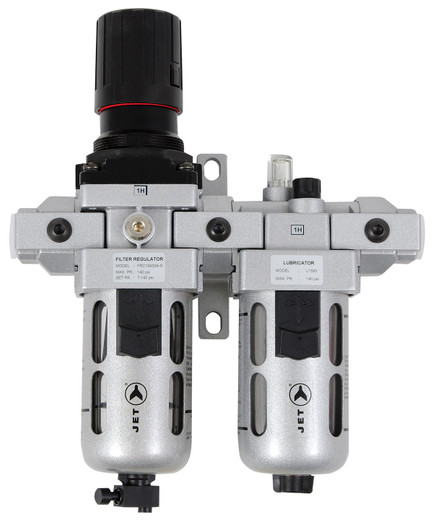

- Jet 408804 - (AFRLCS12) 2 PC Air Filter, Regulator and Lubricator 1/2" NPT - Standard
Product Details
- Space saving 2 piece modular filter, regulator combination and lubricator is by far the most popular air preparation unit
- A combination of 2 Modular units - Filter, Regulator and Lubricator, connected together using a spacer block with a built-in wall mounting bracket and piping adaptors
- Air filter is designed to eliminate dust, water and other impurities from reaching air tool, extending tool life
- Air regulator governs air flow to desired PSI air pressure
- Lubricator device is indispensable for air generated equipment, atomizing lubricant into the compressed air allowing it to reach and lubricate the internal parts of the air tool
- Maximum Working Air Pressure: 145 PSI
- Ambient Temperature: 0-60°C (32-140°F)
- Modular Mounting
- Vertical Mounting
- Wetted Components: Aluminum, bronze, brass, steel, acetal, polycarbonate, stainless steel and nitrile
- Inlet Pressure 105 PSI (7 BAR). Set Pressure 90 PSI (6 BAR). Pressure Drop 17 PSI (1 BAR)
- Max. Flow : 99 cfm (2,800 LPM)
- Port Size : 1/2"
- Pressure Gauge Port Size : 1/8"
- Bowl Size (Filter) : 1.5 oz (44 ml)
- Bowl Size (Lubricator) : 5.17 oz (152 ml)
- Height : 11.02" (280 mm)
- Width : 8.66" (220 mm)
