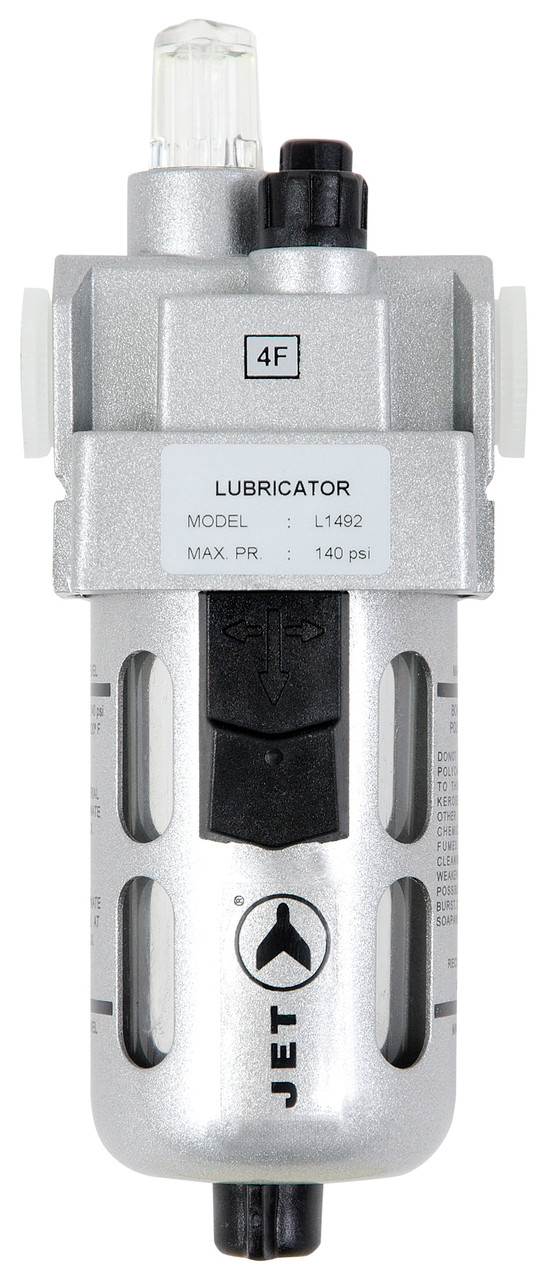

- Jet 408836 - (ALI38) Air Lubricator 3/8" NPT - Intermediate
Product Details
- Used to feed lubricants to pneumatic equipment. These maintain a constant oil-to-air density over a wide range of flow
- Lubricators are Fog/ Micro Mist type, up to 50' pipe runs
- Die Cast Aluminum Head, polycarbonate bowl with a steel bowl guard
- The head is fitted with Oil drop indicator, Oil drop controller and Oil filling plug
- Polycarbonate bowl with threaded steel bowl guard
- Sintered Bronze Filtering element
- Maximum Working Air Pressure: 145 PSI
- Ambient Temperature: 0-60°C (32-140°F)
- Modular Mounting
- Vertical Mounting
- Conforms to ISO 6301-1
- Wetted Components: Aluminum, brass, steel, acetal, stainless steel and nitrile
- Inlet pressure 90 PSI (6 BAR) and pressure drop 7.5 PSI (0.5 BAR)
- Note: Designed for best performance with 32 grade oil
- Max. Flow : 106 cfm (3,000 LPM)
- Port Size : 3/8"
- Bowl Size (Lubricator) : 1.98 oz (57 ml)
- Height : 6.18" (157 mm)
- Width : 2.16" (55 mm)
