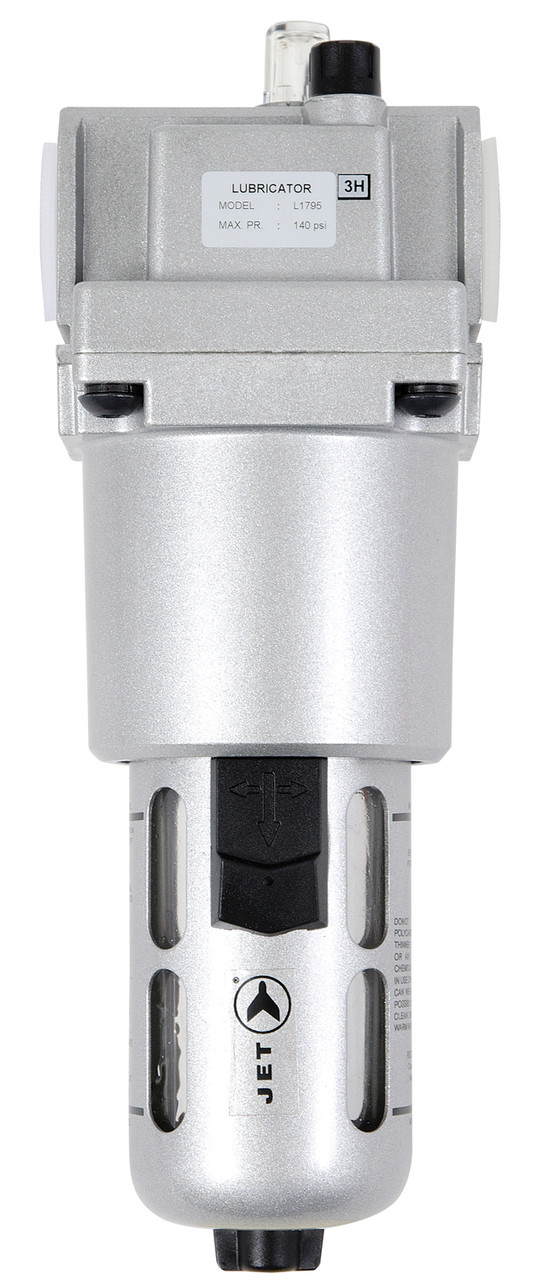

- Jet 408849 - (ALH1) Air Lubricator 1" NPT - Heavy Duty
Product Details
- Used to feed lubricants to pneumatic equipment. These maintain a constant oil-to-air density over a wide range of flow
- Lubricators are Fog/ Micro Mist type, up to 50' pipe runs
- Die Cast Aluminum Head, polycarbonate bowl with a steel bowl guard
- The head is fitted with Oil drop indicator, Oil drop controller and Oil filling plug
- Polycarbonate bowl with threaded steel bowl guard
- Sintered Bronze Filtering element
- Maximum Working Air Pressure: 145 PSI
- Ambient Temperature: 0-60°C (32-140°F)
- Modular Mounting
- Vertical Mounting
- Conforms to ISO 6301-1
- Wetted Components: Aluminum, brass, steel, acetal, stainless steel and nitrile
- Inlet pressure 90 PSI (6 BAR) and pressure drop 7.5 PSI (0.5 BAR)
- Note: Designed for best performance with 32 grade oil
- Max. Flow : 318 cfm (9,000 LPM)
- Port Size : 1"
- Bowl Size (Lubricator) : 6.8 oz (200 ml)
- Height : 10.75" (273 mm)
- Width : 3.54" (90 mm)
