- Jet 408858 - (AFRLMH1) 3 PC Air Filter, Regulator and Lubricator 1" NPT - Heavy Duty
Product Details

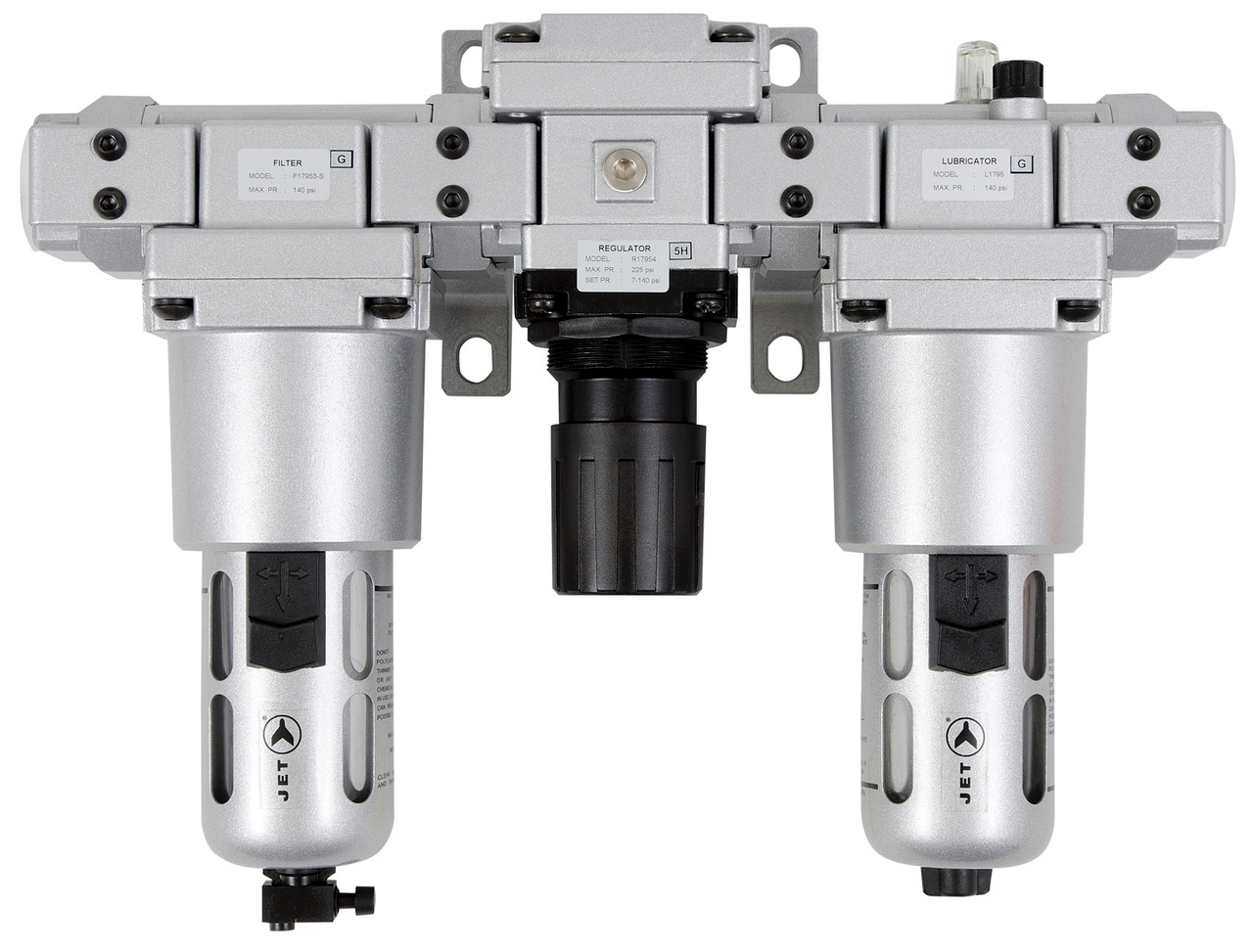

- The filter, regulator and lubricator is a 3 piece assembly including all 3 individual components. The 3 components are attached in series using spacers and piping adaptors, which make the individual components easily removable / mountable without disturbing the pipe line. Comes complete with wall mounting bracket
- Air filter is designed to eliminate dust, water and other impurities from reaching air tool, extending tool life
- Air regulator governs air flow to desired PSI air pressure
- Lubricator device is indispensable for air generated equipment, atomizing lubricant into the compressed air allowing it to reach and lubricate the internal parts of the air tool
- Maximum Working Air Pressure: 145 PSI
- Ambient Temperature: 0-60°C (32-140°F)
- Modular Mounting
- Vertical Mounting
- Wetted Components: Aluminum, bronze, brass, steel, acetal, polycarbonate, stainless steel and nitrile
- Inlet Pressure 105 PSI (7 BAR). Set Pressure 90 PSI (6 BAR). Pressure Drop 17 PSI (1 BAR)
- Max. Flow : 175 cfm (5,000 LPM)
- Port Size : 1"
- Pressure Gauge Port Size : 1/4"
- Bowl Size (Filter) : 5.6 oz (165 ml)
- Bowl Size (Lubricator) : 6.8 oz (200 ml)
- Height : 14.6" (370 mm)
- Width : 14.6" (370 mm)
