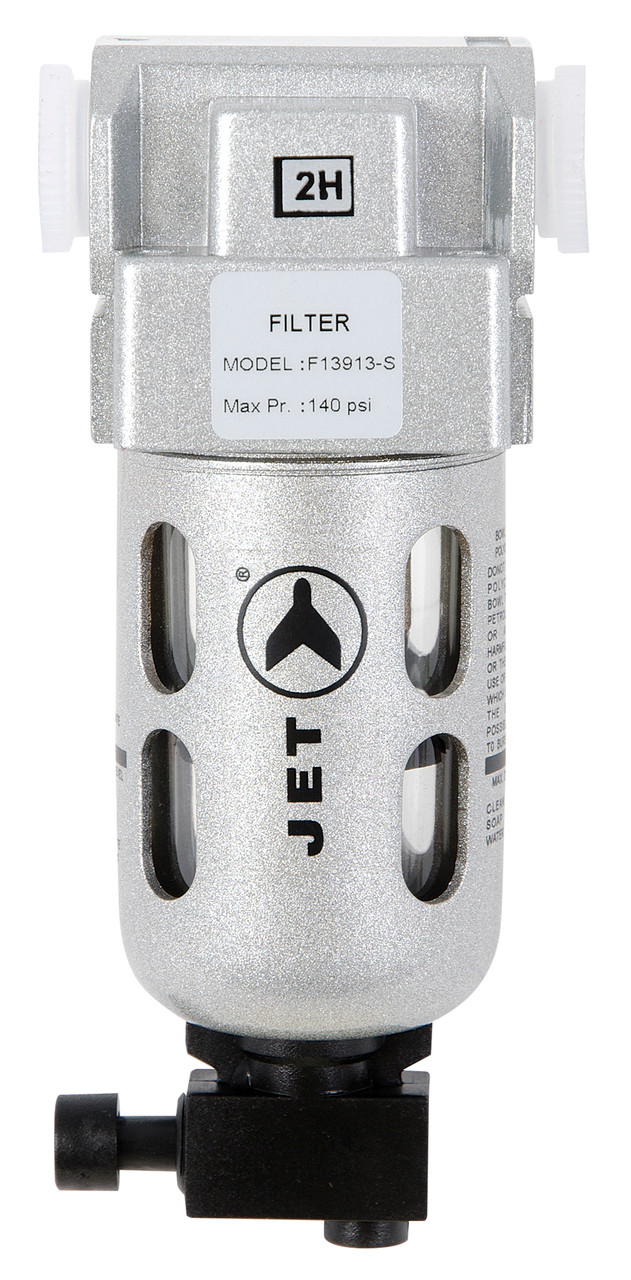

- Jet 408872 - (AFM14) Air Filter 1/4" NPT - Miniature
Product Details
- Air filter is designed to eliminate dust, water and other impurities from reaching air tool, extending tool life
- Die Cast aluminum filter head, polycarbonate bowl with a steel bowl guard & high performance sintered Bronze filtering element
- Designed with a Separator & shield for efficient moisture separation
- Maximum Working Air Pressure: 145 PSI
- Ambient Temperature: 0-60°C (32-140°F)
- Modular Mounting
- Vertical Mounting
- Conforms to ISO 5782-1
- Wetted Components: Aluminum, brass, steel, acetal, stainless steel and nitrile
- Inlet pressure 90 PSI (6 BAR) and pressure drop 4.5 PSI (0.3 BAR)
- Max. Flow : 28 cfm (800 LPM)
- Port Size : 1/4"
- Bowl Size (Filter) : 0.3 oz (9 ml)
- Height : 4.45" (113 mm)
- Width : 1.57" (40 mm)
