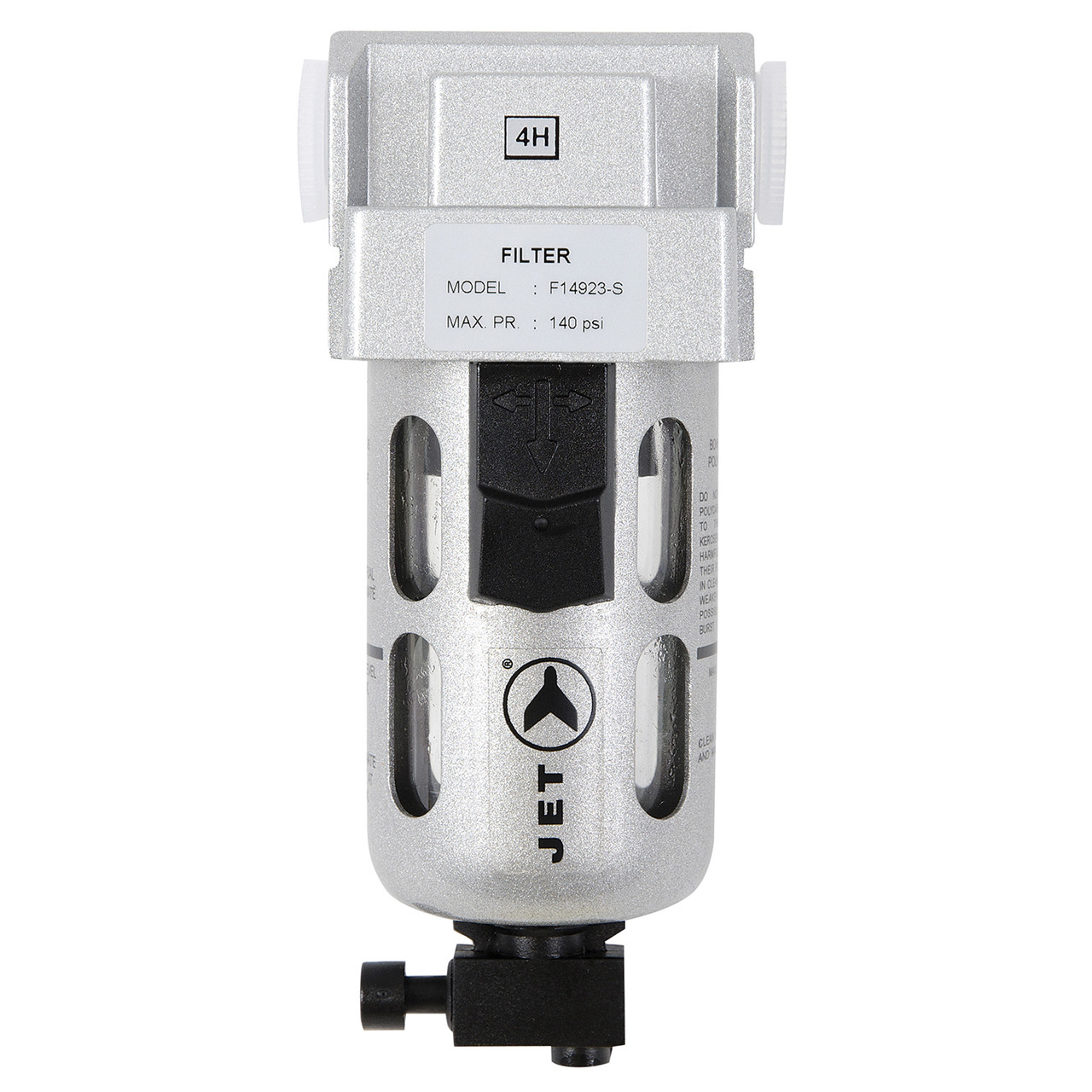

- Jet 408874 - (AFI38) Air Filter 3/8" NPT - Intermediate
Product Details
- Air filter is designed to eliminate dust, water and other impurities from reaching air tool, extending tool life
- Die Cast aluminum filter head, polycarbonate bowl with a steel bowl guard & high performance sintered Bronze filtering element
- Designed with a Separator & shield for efficient moisture separation
- Maximum Working Air Pressure: 145 PSI
- Ambient Temperature: 0-60°C (32-140°F)
- Modular Mounting
- Vertical Mounting
- Conforms to ISO 5782-1
- Wetted Components: Aluminum, brass, steel, acetal, stainless steel and nitrile
- Inlet pressure 90 PSI (6 BAR) and pressure drop 4.5 PSI (0.3 BAR)
- Max. Flow : 80 cfm (2,250 LPM)
- Port Size : 3/8"
- Bowl Size (Filter) : 1.08 oz (32 ml)
- Height : 5.51" (140 mm)
- Width : 2.16" (55 mm)
