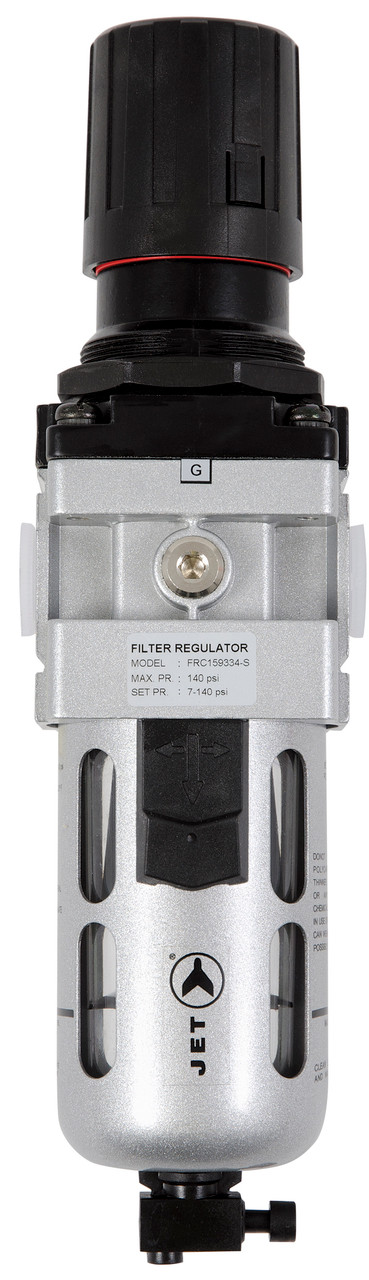

- Jet 408885 - (AFRS12) Air Filter Regulator Combination 1/2" NPT - Standard
Product Details
- Air filter and regulator combined in one unit
- Air filter is designed to eliminate dust, water and other impurities from reaching air tool, extending tool life
- Air regulator governs air flow to desired PSI air pressure
- Regulators uses a Non Raising "Press to Lock" adjusting knob for locking at any set pressure
- Regulators work on a Diaphragm operated, relieving type mechanism with pressure compensated by balanced poppet
- Maximum Working Air Pressure: 145 PSI
- Ambient Temperature: 0-60°C (32-140°F)
- Modular Mounting
- Panel Mounting
- Wetted Components: Aluminum, bronze, brass, steel, acetal, polycarbonate, stainless steel and nitrile
- Inlet pressure 105 PSI (7 BAR). Set pressure 90 PSI (6 BAR). Pressure drop 17 PSI (1 BAR)
- Max. Flow : 106 cfm (3,000 LPM)
- Port Size : 1/2"
- Pressure Gauge Port Size : 1/8"
- Bowl Size (Filter) : 1.5 oz (44 ml)
- Height : 11.02" (280 mm)
- Width : 2.76" (70 mm)
