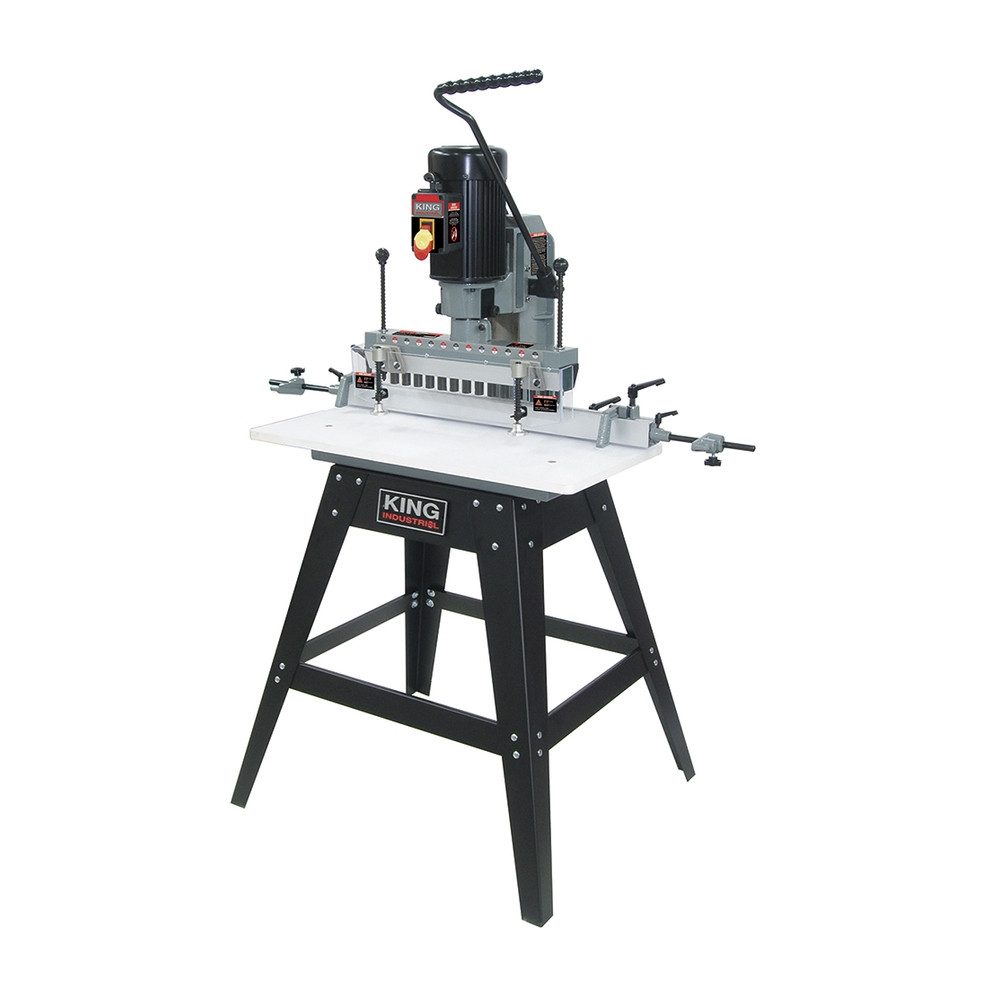

King Canada KC-1300BM - 13-Spindle line boring machine
$2,999.00
$4,060.13
(You save $1,061.13)
Product Details
Description:
- Powerful 1.5 HP, 110V motor
- Designed for simultaneous multi-hole line boring or drilling, ideal for cabinet makers or shelving applications
- 13 spindles spaced 32mm (1-1/4") on centre, allowing drilling up to 13 evenly spaced holes
- Fully adjustable aluminum fence with work stops at each end to line up workpiece from the right or left to perform parallel boring patterns
- Indexing pins allow correct spindle alignment for resuming line boring operations in long workpieces
- Large 31-1/2" x 15-3/4" melamine table top
- Comes complete with open steel stand
Specifications:
- NUMBER OF SPINDLES: 13
- COLLET SIZE: 3/8" (10 mm)
- SPINDLE CENTRES: 32 mm (1-1/4")
- SPINDLE SPEED: 3,500 RPM
- TABLE SIZE: 31-1/2" x 15-3/4"
- MAXIMUM DEPTH OF STROKE: 2-1/2"
- MAXIMUM STOCK THICKNESS: 5-1/2"
- MOTOR: 1-1/2 HP, 12.6 Amp.
- VOLTAGE: 110V, 1 phase, 60 Hz
- ASSEMBLED DIMENSIONS (LXWXH) / WEIGHT: 76" x 28-1/2" x 67" / 215 lbs
