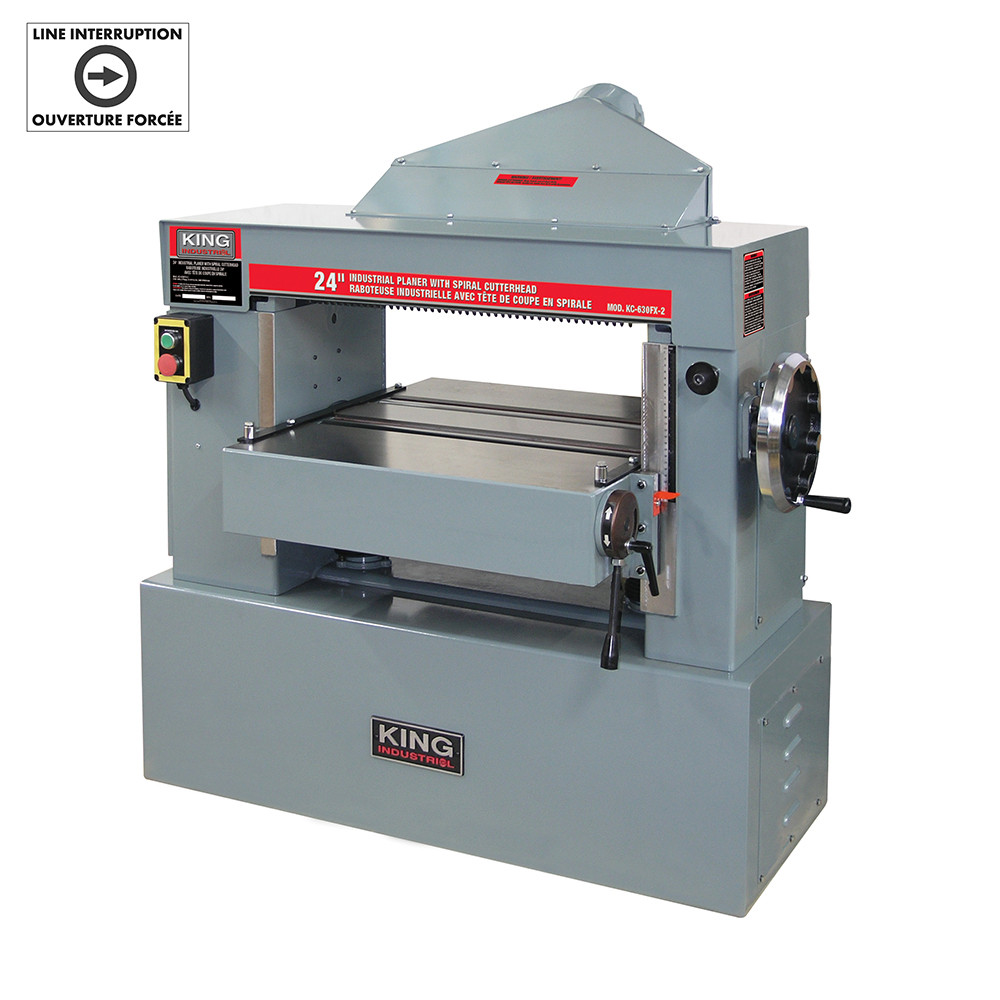

Description:

• Powerful 10 HP motor
• A spiral cutterhead is 50% quieter than a conventional cutterhead
• Variable speed control sets the feed speed while planer is running
• Spiral cutterhead is driven by 3 V-belts Table rollers height is easily adjusted with lever
• Massive cast-iron infeed/outfeed tables for smooth finish
• Front mounted anti-kickback fingers eliminates the risk of workpiece kickback
• Magnetic safety switch with overload protection
• Comes complete with 6" dust collector outlet and adjustment tools

Specifications:

• MAXIMUM PLANING WIDTH: 24"
• MAXIMUM PLANING THICKNESS: 8"
• MAXIMUM DEPTH OF CUT: 5/16"
• CUTTERHEAD SPEED (RPM): 4,800
• CUTTERHEAD DIAMETER: 3-5/16"
• NUMBER OF CUTTER INSERTS: 180 (14 mm x 14 mm x 2 mm)
• FEED RATE: Variable - 20-28 FPM
• MOTOR: 25.1 / 12.6 Amp.
• VOLTAGE: 220V - 440V, 3 phase, 60 Hz
• PRE-WIRED: 220V
