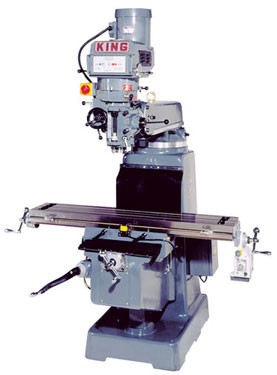

Description:

• 5 HP
• 2 speeds
• variable speed drive
• Turret head swivels 360°
• ”Meehanite” cast-iron and chrome ways
• Bedways are hardened and precision ground
• Centralized lubrication system
• 3 speeds power down feed

Specifications:

• SPINDLE TAPER: ISO 40
• QUILL POWER FEED: 0.0015", 0.003", 0.006"
• MAX. SPINDLE DISTANCE TO TABLE: 18"
• SPINDLE DISTANCE TO COLUMN:24"
• TABLE SIZE: 10" x 50"
• SPEEDS: (70-500 / 600-4,200) RPM
• ASSEMBLED DIMENSIONS (LXWXH) / WEIGHT: 65" x 58" x 85" / 2,750 lbs
• PACKAGING DIMENSIONS (LXWXH) / WEIGHT:66-5/8" x 56-7/8" x 72-5/8" / 3,080 lbs
