- Laguna MBAND18BX2203 - 18|Bx Bandsaw
Product Details

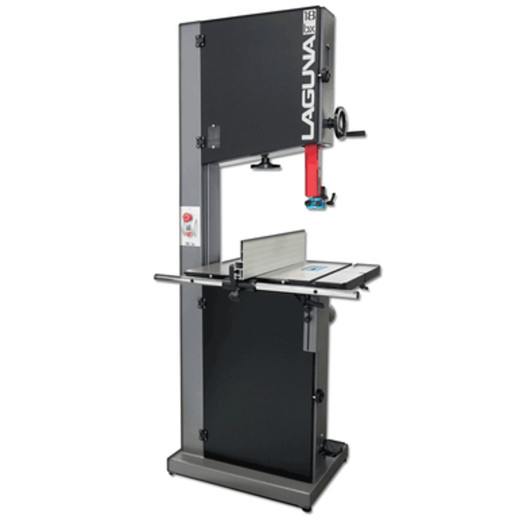

The 18|BX Bandsaw follows in the traditions of high-performance and reliability established by the widely-used Laguna Tools 14|12 and 14|bx models. The 18|bx is built around a 3HP, 220V motor and 145″ (368 cm) blade for consistent results, cut-after-cut, regardless of wood material. (Shown with optional mobility kit)
Features:
- Motor: 3HP, 220V, 1 Ph. 12 Amp.
- Recommended Breaker: 20 Amp.
- Magnetic Starter
- Min-Max Blade Width: 1/8″ – 1-1/4″
- Resaw Capacity: 16″
- Throat: 18″
- Blade Length: 145″
Additional Details:
- Disc-Brake With Micro Switch
- 220V Outlet On Back For Light
- Window For Tension
- Window For Tracking
- Magnetic Blade Tension Guide
- Worm Gear & Pinion Upper Guide
- 10 Point Laguna Ceramic Guides
- Flat Poly-Groove Drive Belt
- Premium Anodized Insert With Micro Adjustment
- Dynamically Balanced Cast Iron Wheels
- Urethane Single Piece Snap-On Tire
- Cast Table Size: 20″ x 26″
- Table Tilt: -6°, +45°
- Cast Table Size: 20″ x 26″
- Table Tilt: -6°, +45°
- Quick-Release Tension
- Hi/Low Anodized Aluminum Fence: 22-½″ x 5-¾″ x ½″
- Table Height: 38″
- Dust Ports: 4″ x 2
- Overall Height: 77-¾″
- Dimensions (Base): 27″ x 20″
- Dimensions Overall: 36″ x 30″
- Dimensions Box: 36″ x 84″ x 30″
- Weight (Net/Ship): 410/460 lbs
