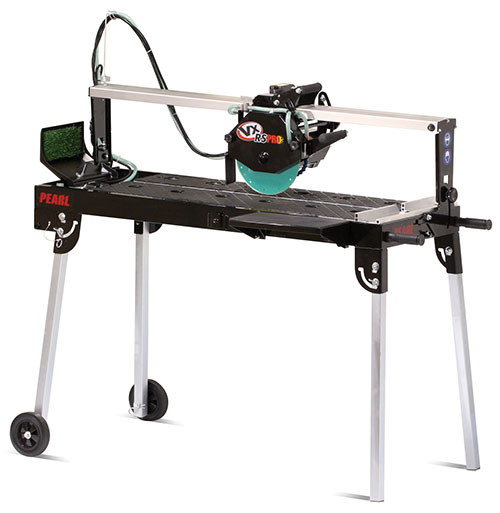

10" PRO RAIL SAW

CUTS LARGER TILES THAN ORIGINAL!
Rip cut 40" tile.   Diagonal cut 28" tile.
Powerful 1-1/2HP motor with thermal overload protection.

NEW & IMPROVED CUTTING HANDLES!
2 handles to move the cutting head easily.

• Position lock cutting head
• Up to 1" plunge cut
• Rubber-matted cutting table
• Sturdy wheels for easy transport
• Removable extension table adds extra workspace
• Splash guard reduces overspray
• Blade capacity of 10" enhances cutting capacity
• Holes in the table divert water and waste material away from the work area. Water is recycled through these holes keeping it in the pan and off the floor
• One-year limited warranty

LEGS FOLD UNDER SAW FOR EASY TRANSPORT.

MOTOR:  1-1/2 HP, 115v, 60Hz, single phase.  3,450 rpm, 60 Hz with thermal overload protection
CUTTING CAPACITY:  Depth of Cut:  (8" blade) 1-1/2" • (10" blade) 2-5/8"
BLADE CAPACITY:  8" - 10" with 5/8" arbor size
WEIGHT:  172 lbs.
DIMENSION (legs folded):  (L)60" x (W)25" x (H)24"

INCLUDED WITH SAW: Professional diamond blade, 45º/90º rip guide, universal wrench, water pump, water level tube, table extension, drain plug, Owner’s manual.
