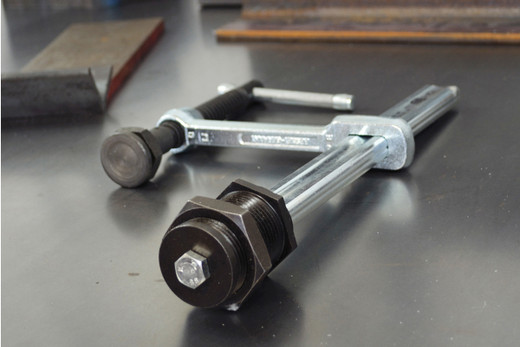

Jig and Fixture Clamp, 8 Inch Capacity, 5-1/2 Inch Throat Depth

The BESSEY FC24-8 clamp may be used in 3 distinctive ways. In a non-rotating fixed position, in a fixed position with 360° rotation, or as a removable clamping fixture with full 360° rotation. Installing extra outer bushing assemblies into your set-up table allows for quick re-positioning of this clamp. BESSEY. Simply better.

• Designed for welding tables with 50 mm (2 inch) holes
• Pressure pad swivels up to 35°
• Clamp rotates 360°
• Jig & fixture (FC)

A full rotation of 360° for easy work-piece removal. The pressure plate swivels up to 35° and the bushing O/D is 113/16", and can fit a table thickness of 1?2" to 1 1?2". Bushing can be set to be freely rotating, fixed or quick release position by adjusting or removing bottom plate.

Specifications:

• Jaw Width: 1.5 Inches.
• Throat Depth: 5.5 Inches.
• Nominal Clamping Capacity: 8 Inches.
• Clamping Force: 2660 LBS.
• Rail Dimensions: 1-3/16 Inches x 19/32 Inches.
• Clamping Screw Diameter: 0.78 Inches.
