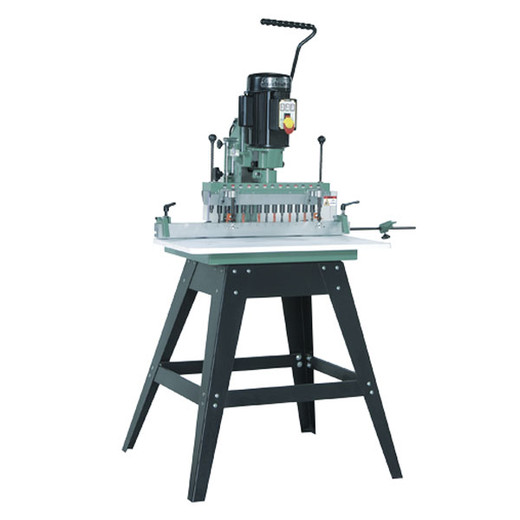

Product Details
- Fully adjustable fence system with easy to read scales in both inches and metric for quick setup and accurate boring.
- Heavy-duty cast-iron construction, machined with precision.
- Indexing pins to maintain correct spindle alignment for resuming line boring operations in long workpieces.
- Work stops on either end of the fence allow operator to line up work from the left or right for performing parallel boring patterns.
- Adjustable depth stop control.
- Powerful 1 1/2 HP motor delivers plenty of power and speed for multiple hole boring even in the toughest laminates.
- Manual operation requires minimal maintenance.
- Open base steel stand included.
- Drilling head can be easily removed and replaced with optional Blum style hinge boring attachment (item #75-445) without the need for special tools.
| Number of spindle drill heads | (13) 6 to left + 7 to right) |
| Spindle centers | 1 1/4" (32 mm) |
| Collet size | 3/8" (10 mm) |
| Spindle speed | 3450 rpm |
| Table size (l x w) | 31 1/2” x 15 3/4” (800 x 400 mm) |
| Table height from floor | 33 3/8” (847 mm) |
| Maximum depth of stroke | 2 1/2” (64 mm) |
| Maximum depth (bit to fence) | 4” (102 mm) |
| Fence | 31 1/2” (800 mm) |
| Maximum stock thickness | 5 1/2” (140 mm) |
| Motor | 1 1/2 HP ,110 V, 1 Ph, 12.6 A |
| Weight | 214 lbs (97 kg) |
