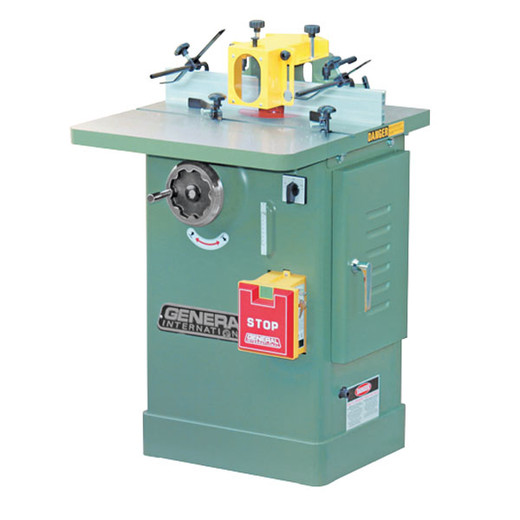

General - 3/4" spindle shaper - 40-250M1

$1,999.99
SKU:
GEN40-250
UPC:
6.26708E+11
Weight:
999.00 LBS
Shipping:
$195.00 (Fixed shipping cost)
Current Stock:
Out of Stock. We can take your order over the email or phone. We do everything we can to fill your order completely.

Out of Stock

Product Details

  • Magnetic 2-step safety switch to prevent unintentional start-up is equipped with an extra-large easy access stop panel and a lock-out key to prevent unauthorized use.
  • Extra large, heavy cast-iron table with a smooth, ground surface finish.
  • Two (2) spindle speeds, with reverse.
  • Independent left and right fences feature precision micro-adjustment.
  • Industrial motor protected against dust by a totally enclosed cabinet.
  • Fence system / cutter head guard includes a cutter guard, spring hold-downs and a built-in 4″ dust collection outlet.
  • T-slot miter gauge for better workpiece control.
  • 1/4″ (#40-205) & 1/2″ (#40-210) router bit adapters included.
  • 1/2″ (#40-215) & 3/4″ (#40-220) spindles included.



Deluxe adjustment fence system 27” x 25” (686 x 635 mm)
Table height 34” (864 mm)
Spindle opening diameters 7”, 3 1/2”, 3” (177, 89 & 76 mm)
Spindles diameters 1/2” & 3/4” (13 & 19 mm)
Spindle travel 3” (76 mm)
Spindle speeds 8000 & 10 000 rpm
Fence sizes (aluminum) 3” x 11” (76 x 279 mm)
Dust chute outlet 4” (102 mm)
Overall dimensions (l x w x h) 21 1/4” x 17 1/4” x 42 1/2" (540 x 438 x 1080 mm)
Motor 3 HP, 220 V, 1 Ph
Weight (shipping / net) 343 lbs (156 kg) / 326 lbs (148 kg)



Includes:

Push sticks

Router bit adapters

Spindles



Features:



► Deluxe adjustment fence system.
