Product Details

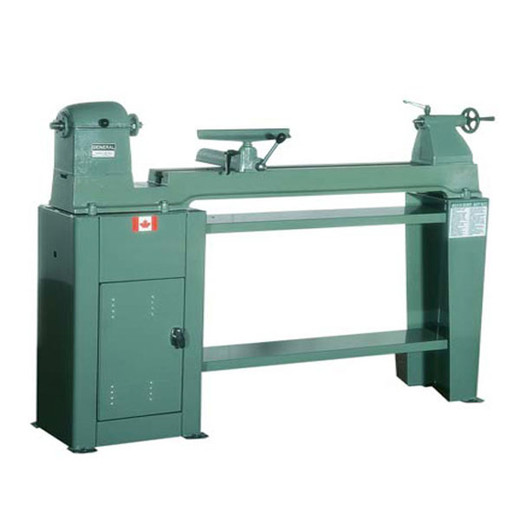

High quality ribbed cast-iron headstock, tailstock and bed.
Precision-machined, high quality steel spindle, mounted on sealed, permanently lubricated bearings
Equipped with a plunger-type pin indexing machanism for reeding and fluting.
Spindle nose is threaded 5/8" at both ends and bored for a "Morse No.2" taper.
Removable headstock cover for access to the spindle and indexing mechanism.
powerful North American designed, totally enclosed, fan cooled industrial motor.
Push-button safety switch
| Swing-Over Bed Capacity | 18" (457 mm) |
| Swing-Over Gap Capacity | 21" (533 mm) |
| Max. Distance Between Centers | 38" (965.2 mm) |
| Floor to Spindle Center | 41" (1041.4 mm) |
| Nose-Inboard | 1" -8 (25.4 mm) |
| Nose-Outboard | 1" -8 (25.4 mm) |
| Spindle Bore | 5/8" (16 mm) |
| Headstock/Trailstock Taper | Morse no. 2 |
| Tailstock Spindle Travel | 2" (50.8 mm) |
| Turning Speeds | 4 |
| Spindle Speeds | 850, 1375, 2160, 3500 RPM |
| Motor | 1 HP, 115 V, 1 Ph, 12.8 A |
| Weight | 283 LBS (128 kg) |
Accessories Included:
- Drive Center #1632SA
- Ball Bearing Center #2651-1
- Knock Out Bar #2644
- 4" Tool Rest #166
- 3" Diameter Face Plate #1637
- Tool Rest Base #264SA
