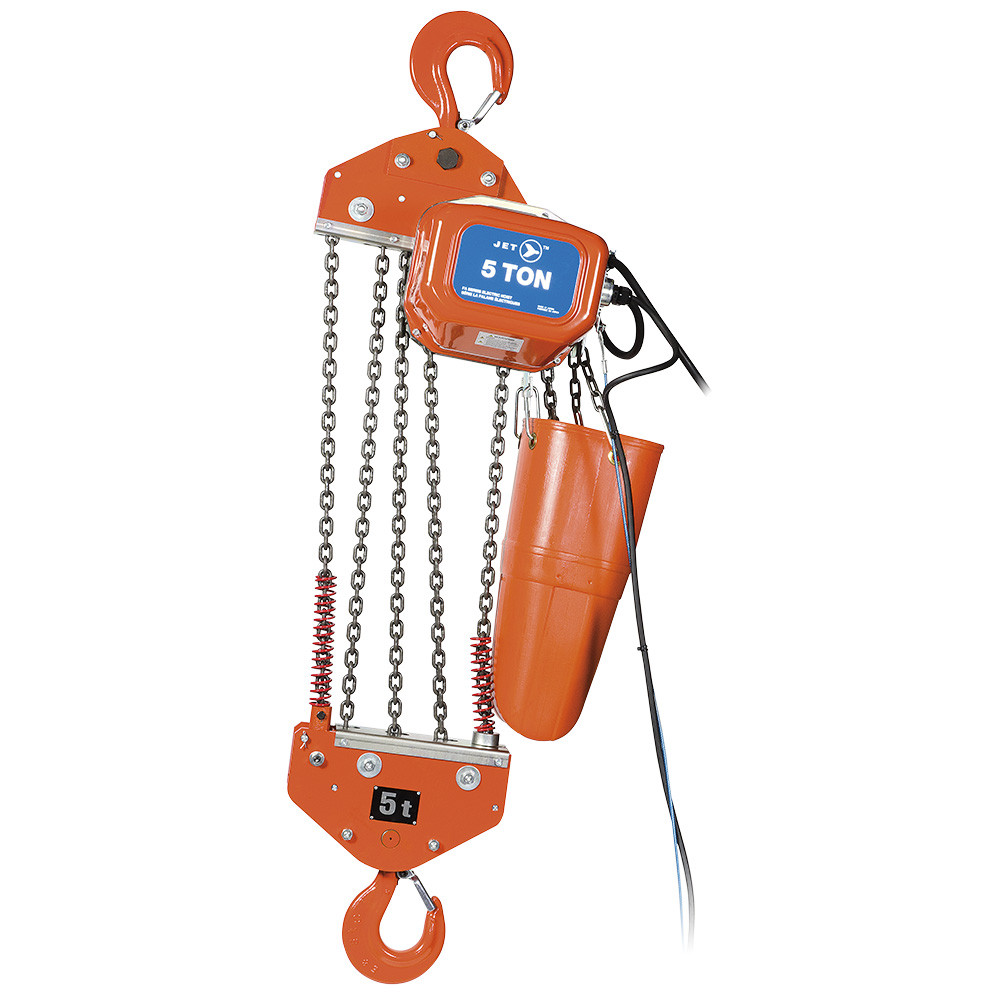

- Jet 107206 - (FA-1-5S) 5 Ton 15' Lift 115/230V 1PH Electric Chain Hoist - Heavy Duty
Product Details
- Available in single phase or three phase models and various voltages (specify when ordering)
- 1/2 ton - 5 ton capacities
- Chain is heat treated, case hardened low wear chain surpassing ISO Class T
- All models complete with chain collector bucket
- Reliable electro-magnetic DC brake engages automatically when power is cut off
- Two button pendant control automatically returns to OFF mode when either button is released
- 24 volt pendant control for operator safety in damp or humid conditions
- Strain relief cable protects electrical connections
- Top and bottom safety hooks designed to bend slowly to warn of overloads
- Upper and lower limit switches protect hoist from damage if load or chain stop contacts body
- Gear train and electrical components completely sealed for use outdoors (cover recommended)
- Modular construction of motor, gear train, and brake assembly allows for quick and easy maintenance
- Single phase hoists equipped with automatic overload protection preset to 110% of rated capacity
- Three phase hoists feature reverse phase protection
- Meets ASME B30.16, CSA, and OSHA standards
- Rated Lifting Capacity : 5 T
- Rated Lifting Capacity : 11,000 lb
- Standard Lift : 15'
- Standard Chain Bucket : #5
- Hoisting Speed : 2 FPM
- Voltage : 115/230 V
- Power Source : 1 ph
- Head Room : 35.43"
- Motor Power : 1.2 HP
- Duty Rating : 25 min
- Power Cable Length : 16'
- Number of Falls : 5
- Amperes : 13 / 10.5
- A: 7.20"
- B: 10.75"
- C: 9.41"
- D: 19.21"
- H: 35.43"
- K: 2.76"
- L: 1.02"
- M: 7.44"
- N: 2.24"
- O: 1.65"
