- Jet 107262 - (FA-0.5S) 1/2 Ton 15' Lift 575V 3PH Electric Chain Hoist - Heavy Duty
Product Details
- Available in single phase or three phase models and various voltages (specify when ordering)
- 1/2 ton - 5 ton capacities
- Chain is heat treated, case hardened low wear chain surpassing ISO Class T
- All models complete with chain collector bucket
- Reliable electro-magnetic DC brake engages automatically when power is cut off
- Two button pendant control automatically returns to OFF mode when either button is released
- 24 volt pendant control for operator safety in damp or humid conditions
- Strain relief cable protects electrical connections
- Top and bottom safety hooks designed to bend slowly to warn of overloads
- Upper and lower limit switches protect hoist from damage if load or chain stop contacts body
- Gear train and electrical components completely sealed for use outdoors (cover recommended)
- Modular construction of motor, gear train, and brake assembly allows for quick and easy maintenance
- Single phase hoists equipped with automatic overload protection preset to 110% of rated capacity
- Three phase hoists feature reverse phase protection
- Meets ASME B30.16, CSA, and OSHA standards
- Rated Lifting Capacity : 1/2 T
- Rated Lifting Capacity : 1,100 lb
- Standard Lift : 15'
- Standard Chain Bucket : #2
- Hoisting Speed : 28 FPM
- Voltage : 575 V
- Power Source : 3 ph
- Head Room : 18.9"
- Motor Power : 1.2 HP
- Duty Rating : 30 min
- Power Cable Length : 16'
- Number of Falls : 1
- Amperes : 1.4

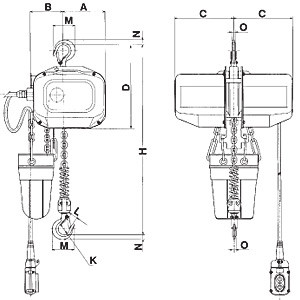

- A: 6.34"
- B: 4.88"
- C: 8.82"
- D: 12.24"
- H: 18.90"
- K: 1.42"
- L: 1.30"
- M: 3.39"
- N: 0.94"
- O: 0.75"
