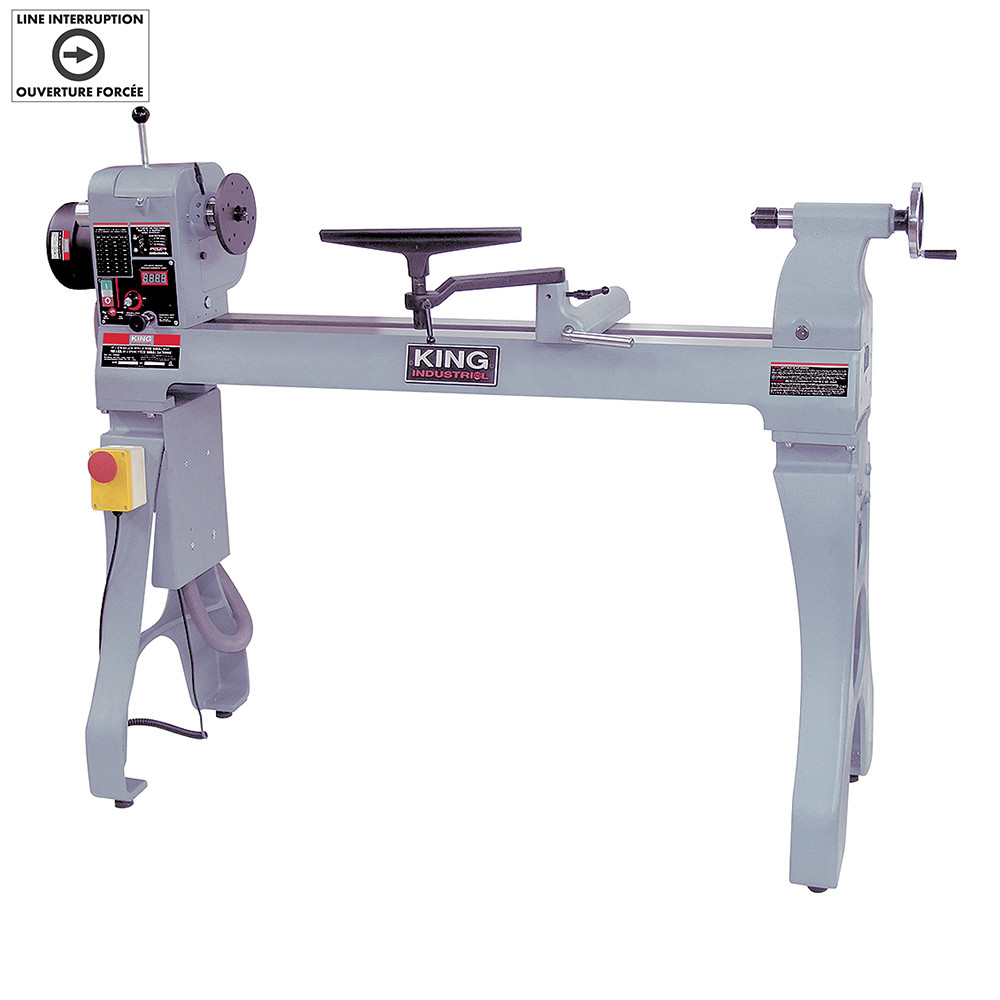

- King Canada KWL-1643ABC - 16 x 43 Wood lathe with electronic variable speed
Product Details
Description:
- Powerful 2 HP, 220V, 3 phase motor with 110V, single phase input power converter
- Heavy-duty precision cast iron bed and stand legs ensure stability and minimize operating vibrations
- Electronic inverter controls the variable speed range from 45 - 3,750 RPM
- Headstock swivels 360° with positive stops at 45°, 90°, 135°, 180° and 270° for outboard turning
- Spindle speed digital readout for precise turning speed
- Emergency stop switch with magnetic backing can be positioned anywhere on the cast iron bed
- Forward/reverse spindle rotation
- 36 x 10° indexing positions
- Comes complete with 6" face plate, 14" tool rest with offset and base, MT#2 headstock spur and tailstock live centres, knock out bar and adjustment wrenches
Specifications:
- SWING OVER BED: 16"
- SPINDLE SIZE: 1-1/4" x 8 TPI
- SPINDLE BORE: 3/8"
- DISTANCE BETWEEN CENTRES: 43"
- SPINDLE SPEEDS: 3 (45-1,000 / 85-2,000 / 150-3,750) RPM
- HEADSTOCK AND TAILSTOCK TAPER : MT #2
- MOTOR: 2 HP, 220V, 6.2 Amp., 3 phase, 60Hz
- INPUT POWER: 110V, 1 phase, 60Hz
- ASSEMBLED DIMENSIONS (LXWXH) / WEIGHT: 63-1/2" x 22-1/4" x 52-1/2" / 418 lbs
