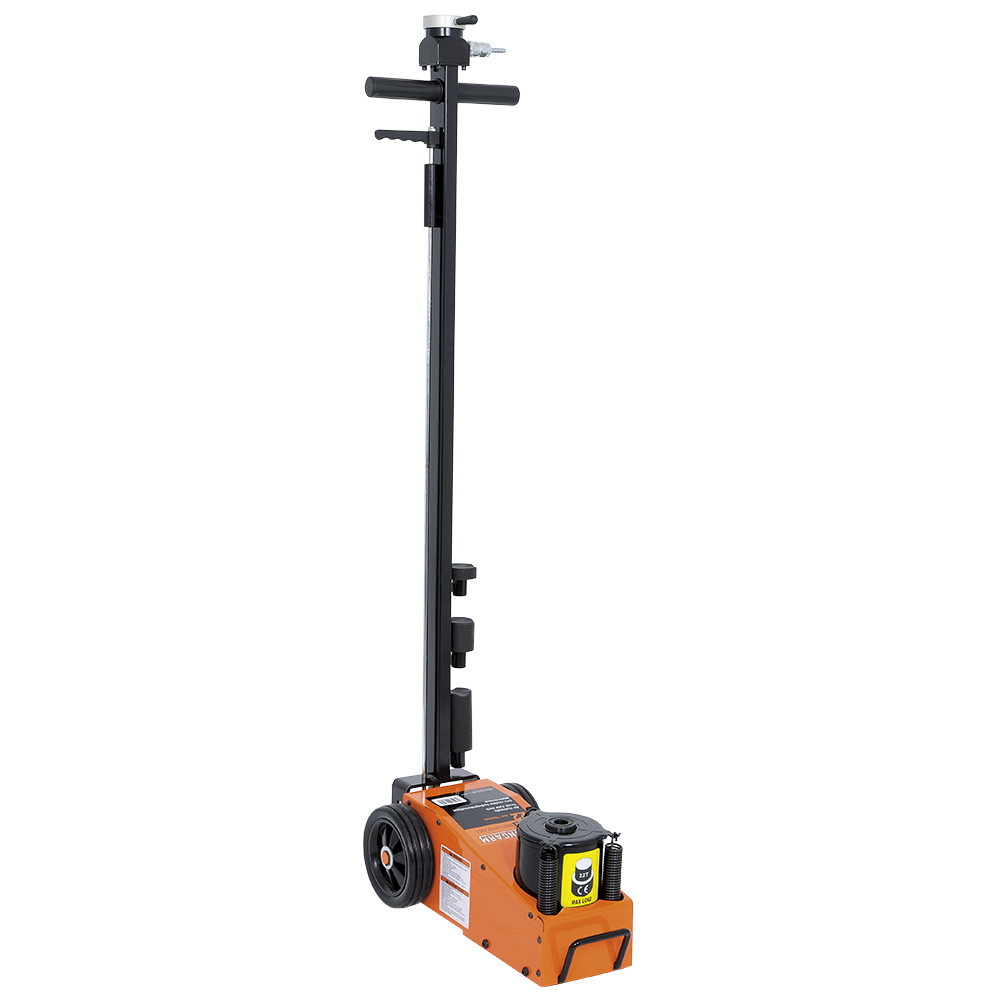

Strongarm 030450 - (722SHD) Single Stage 22 Ton Air Hydraulic Truck Jack - Super Heavy Duty

165.00 LBS
Special Order: Usually Ships in 10-14 Business Days.
$199.00 (Fixed shipping cost)
$199.00 (Fixed shipping cost)

Product Details

  • Super Heavy Duty, single stage 22 Ton jack built for a wide variety of demands from the heavy duty trucking, agricultural, fleet, construction and military sectors
  • The piston head seal design is borrowed from industrial technology providing a superior low and high pressure seal, giving this jack a much better hold under severe load conditions
  • The extra long 138 cm (54") handle can be locked in 3 positions for easy positioning of this jack in hard-to-reach places
  • Double polished chromed pistons yield much tighter tolerances which minimize oil bypass and reduce ram scoring
  • Fast 2-speed air/hydraulic action advances ram to load faster for quicker, more efficient operation
  • Includes safety valve for overload protection
  • An integral descent metering valve maintains a controlled and safe lowering of the load
  • Air assisted lowering as well as 3 self-returning springs for faster ram retraction
  • Controlled lowering speeds for increased safety (70mm in 5 sec under load, 75mm in 5 sec without load)
  • Comes with 3 heat treated extensions (20, 50, 100 mm) for a wide range of lifting options
  • Tested to 20,000 cycles for long service life and increased return on investment
  • Capacity : 22 T
  • Low Height : 215 mm (8-1/2")
  • High Height : 356 mm (14")
  • Working Air Pressure : 90 – 120 PSI
  • Lift : 5-1/2" (141 mm)
