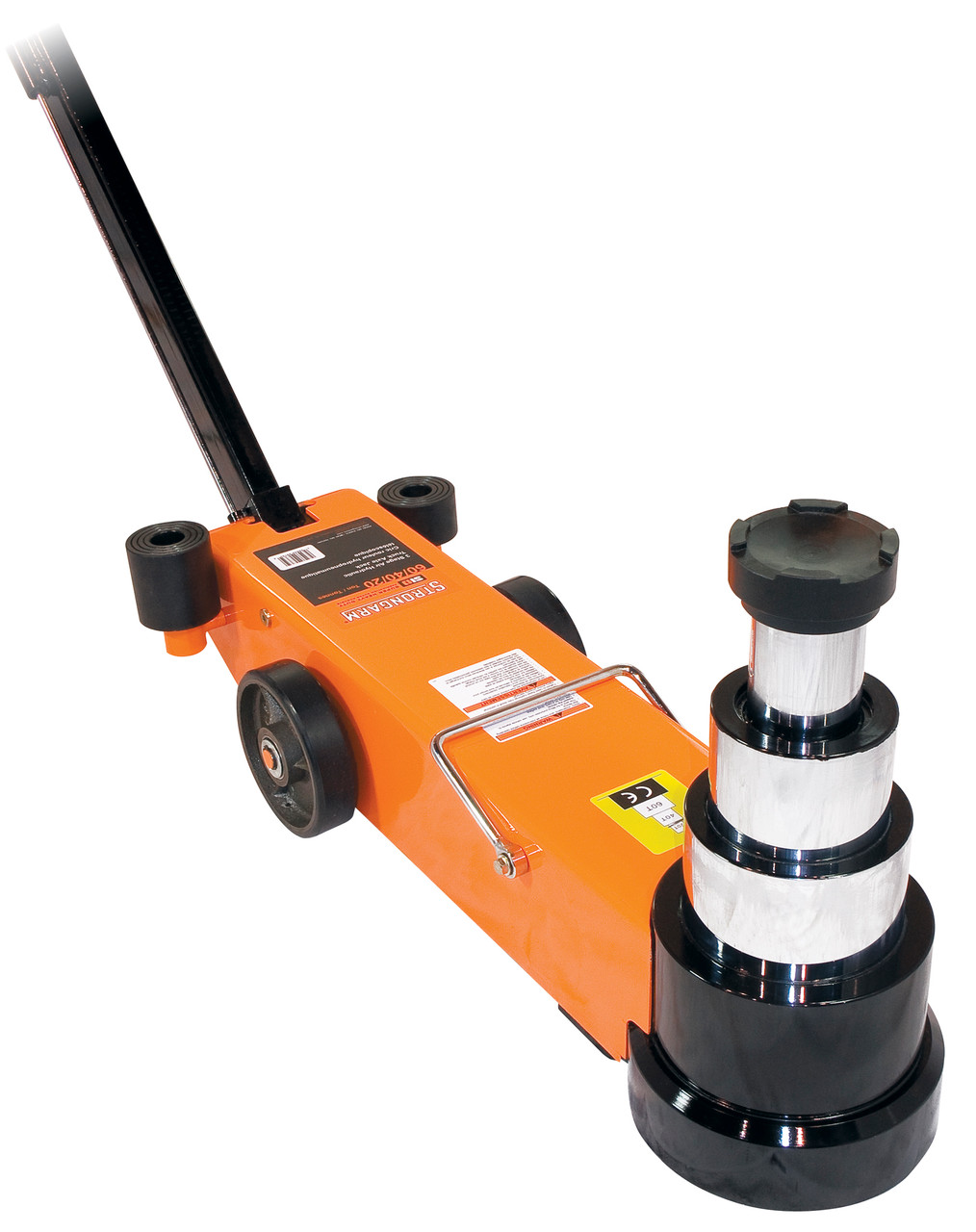

Strongarm 030476 - (760SHD) 3 Stage 60/40/20 Ton Air Hydraulic Truck Jack - Super Heavy Duty
$4,226.99
Product Details
- This Super Heavy Duty, 3 Stage 60/40/20 Ton Air Hydraulic Jack covers a wide variety of demands from the heavy duty trucking, agricultural, fleet, construction and military sectors
- The piston head seal design is borrowed from industrial technology providing a superior low and high pressure seal, giving this jack a much better hold under severe load conditions
- The extra long 138cm (54") handle can be locked in 3 positions for easy positioning of this jack in hard to reach places
- An integral Descent Metering Valve maintains a controlled and safe lowering of the load
- Single piece base construction provides superior strength for increased load stability
- Double polished chromed pistons allow for much tighter tolerances which reduce oil bypassing and reduced ram scoring
- Air assisted lowering speeds up ram retraction
- Built-in overload safety valve prevents damage to unit due to excessive load
- Comes with 2 extensions (75mm + 45 mm) and saddle adaptor
- Units are tested to -25°C and + 45°C as well as off centre loading to ensure a long life under even the harshest conditions
- Capacity : 60 T (1st Stage) / 40 T (2nd Stage) / 20 T (3rd Stage)
- Low Height : 175 mm (6.89")
- High Height : 60 Ton - 252 mm (9.92") Lift - 77 mm (3.03")
- High Height : 40 Ton - 322 mm (12.68") Lift - 147 mm (5.79")
- Working Air Pressure : 60 Ton - 0.8 1.2 Mpa (116 174 PSI)
- High Height : 20 Ton - 404 mm (15.91") Lift - 229 mm (9.02")
