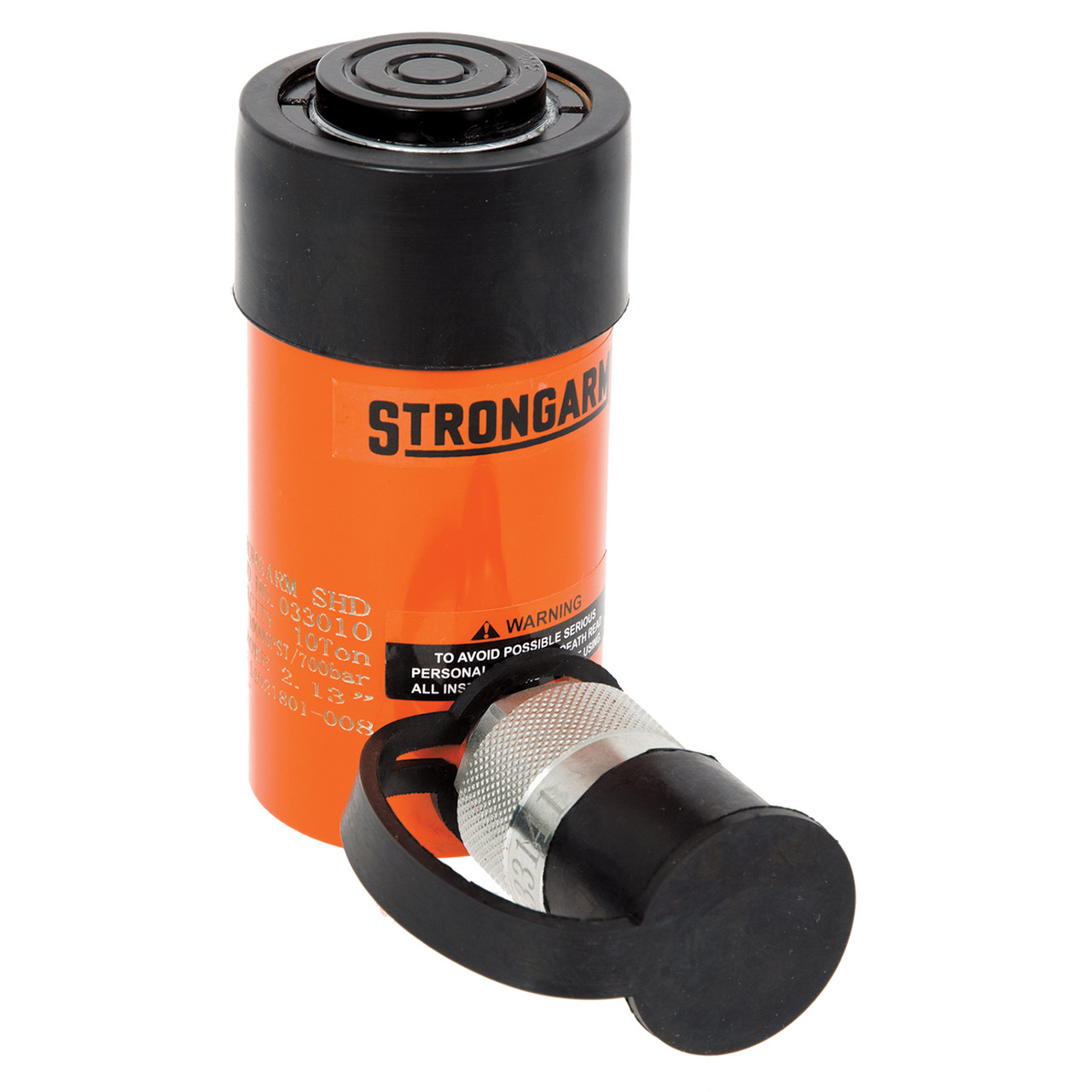

Strongarm 033010 - (SACS102) 10 Metric Ton Single Acting Cylinder - Super Heavy Duty

$608.99
SKU:
JET033010
UPC:
059629998106
Weight:
12.00 LBS
Availability:
Special Order: Usually Ships in 10-14 Business Days.
Shipping:
Calculated at checkout
Shipping:
Calculated at checkout
Qty:

Product Details

  • Complies with ANSI specifications
  • High strength alloy steel for safety and durability
  • Inside cylinder treated to enhance durability
  • Features collar threads, plunger threads and base mounting holes for optional fixture attachment
  • Heavy duty plunger spring return
  • High quality 3/8"-18 NPT quick coupling
  • Baked enamel finish for increased corrosion resistance
  • Cylinder Capacity @ 700 Bar (10,000 PSI) : 10/11 Metric tons/US tons
  • Stroke : 2.13"
  • Cylinder Effective Area : 2.25 in²
  • Oil Capacity : 4,78 in³
  • Collapsed Height (A) : 4.76"
  • Extended Height (B) : 6.89"
  • Collar Thread (C) : 2-1/4" - 14
  • Collar Thread Length (X) : 1.02"
  • Outside Diameter (D) : 2.25"
  • Piston Rod Diameter (F) : 1.50"
  • Piston Internal Thread (O) : 1"-8UNC
  • Piston Thread Length (P) : 0.75"
  • Base Fixturing Holes - Bolt Circle U : 1.54"
  • Base Fixturing Holes - Thread V : 5/16"-18UNC
  • Base Fixturing Holes - Thread Depth Z : 0.47"
