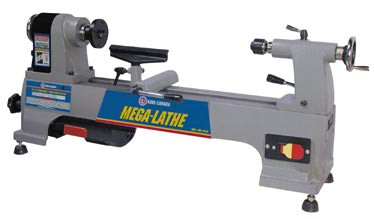

- King Canada - 10" x 16" Wood Lathe - KWL-1016C
Product Details
Description:
- All precision-machined cast-iron bedway, headstock and tailstock construction ensures stability and minimizes vibration for smoother turning
- 10" inboard swing for bowl turning
- Maximum turning capacity of 16 between centers
- Easy access 6-speed step pulley matches speed with specific turning operation
- Large 6" toolrest for flexibility in turning positions
- Toolrest post clamp can be positioned on either side
- Complete with MT#2 live center, MT#2 spur center, 3" faceplate, steel knock-out bar, hex. keys and safety glasses
Specifications:
- SWING OVER BED: 10"
- SWING OVER BASE : 7-1/2"
- DISTANCE BETWEEN CENTERS: 16"
- SPINDLE SIZE (RH THREAD) : 1" x 8 TPI
- SPINDLE SPEEDS: 6 (480 / 1,270 / 1,960 / 2,730 / 3,327 / 4,023 RPM)
- HEADSTOCK, TAILSTOCK TAPER : MT #2
- SELF-EJECTING TAILSTOCK TRAVEL : 3-1/2"
- MOTOR: 1/2 HP / 1,720 RPM
- VOLTAGE: 110V, 1 phase, 60 Hz
- ASSEMBLED DIMENSIONS (LXWXH) / WEIGHT: 34" x 10" x 15" / 106 lbs
