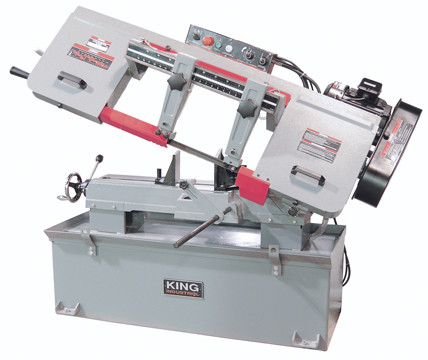

Description:

• Powerful 2 HP motor
• Carbide ball bearing blade guides
• Centralized control panel and automatic shut-off
• Adjustable hydraulic down feed control
• TRU-LOCK™ cam lock and quick positioning vise system with fully adjustable jaws for 0? to 45? angled cuts
• To ensure reliable accurate cuts, both adjustable control arms can be positioned as close to the cut as possible
• Exclusive 24 Volt control panel
• Coolant system with regulator valves provide an even flow of coolant to the blade

Specifications:

• CUTTING CAPACITY AT 90°: Rect. 10" x 18" • Diam. 10"
• CUTTING CAPACITY AT 45°: Rect. 7" x 9-3/8" • Diam. 10"
• SPEEDS: 4 (114, 196, 288, 377) FPM
• BLADE: 122" x 1" x 0.032"
• MOTOR: 2.6 Amp.
• VOLTAGE: 600V, 3 phase, 60 Hz
• TABLE HEIGHT FROM FLOOR: 23”
• ASSEMBLED DIMENSIONS (LXWXH) / WEIGHT: 70" x 27" x 42" / 634 lbs
• PACKAGING DIMENSIONS (LXWXH) / WEIGHT: 67-1/2" x 29-1/4" x 43-1/2" / 775 lbs
