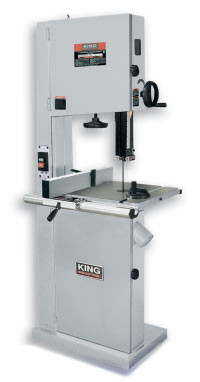

Description:

• Improved adjustable upper/lower ball bearing blade guide system
• Rack and pinion height adjustment system
• 2 speeds
• 2 x 4" dust chutes for dust collector hook-up
• Quick release blade change lever
• Cutting height indicator
• Blade tension meter and tracking can be seen through conveniently placed windows
• 10° left / 45° right square cast iron tilting table
• Hinged doors for quick access to the blade
• Motor, blade, miter gauge and precision "TRU-RIP" aluminum rip fence with resaw guide included

Specifications:

• CUTTING CAPACITY FRAME TO BLADE: 16-1/4"
• TABLE SIZE: 17” x 17”
• TABLE HEIGHT FROM FLOOR: 35-1/2"
• BLADE SIZE: 131-5/8" x (1/8" - 1") x 0.025"
• HEIGHT OF CUT: 12"
• MOTOR: 14 Amp. / 7 Amp.
• VOLTAGE: 110V / 220, 1 phase, 60 Hz
• PRE-WIRED AT: 110V
• SPEED: 2 (1,600-3,300) SFPM
• ASSEMBLED DIMENSIONS (LXWXH) / WEIGHT: 32" x 26" x 74" / 325 lbs
