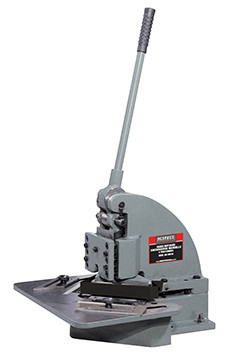

- King Canada - 4 Ton Hand Notcher - KC-N616
Product Details
Description:
- Heavy cast-iron construction allows the Notcher to be used to shear 6" of material up to its rated capacity
- Notch angles of more than 90° through a 2-step process
- Triangular ram accurately controls the alignment of the cutting head at all times
Specifications:
- NOTCHING CAPACITY (MILD STEEL): 16 Gauge
- PIERCING CAPACITY (MILD STEEL): 18 Gauge
- MAXIMUM NOTCH: 6" x 6" x 90°
- STROKE: 3/4"
- TABLE SIZE: 18" x 12-1/8"
- ASSEMBLED DIMENSIONS (LXWXH) / WEIGHT: 18" x 19" x 19" / 165 lbs
- PACKAGING DIMENSIONS (LXWXH) / WEIGHT: 22-3/4" x 20-3/4" x 20" / 187 lbs
