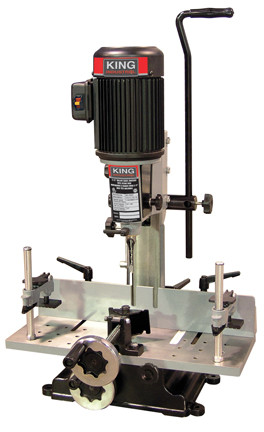

Description:

• Powerful 3/4 HP enclosed fan cooled ribbed body motor for long life and trouble-free operation
• Longitudinal sliding table with locking system prevents unnecessary repositionning and reclamping of the workpiece
• Gas head cylinder for smooth and controled cuts
• Rack and pinion gears move entire head for maximum leverage and positive feed control
• Heavy-duty precision machined cast-iron construction
• Includes sleeve adaptors which accept 5/8" and 3/4" diameter chisel shanks
• Adjustable depth and height stops
• Comes complete with mortising chisel and bit set (1/4", 5/16", 3/8" and 1/2"), 1/2" chuck and key, column mounted hold down, pair of 9 positions table hold downs and quick release vise

Specifications:

• CHISEL CAPACITY: 1/4" - 5/8"
• CHUCK CAPACITY: 1/2"
• MAXIMUM CHISEL STROKE: 6-1/2"
• MAXIMUM DISTANCE FENCE TO CENTER CHISEL: 3"
• MAX. DISTANCE CHISEL TO TABLE (HEAD EXTENDED): 9-1/2"
• UNDER TABLE HOLD DOWN CAPACITY: 5-3/4"
• SLIDING TABLE SIZE: 20" x 8-1/4"
• SLIDING TABLE TRAVEL (RIGHT-LEFT): 16"
• FENCE SIZE: 20" x 3-9/16"
• SPEED: 1,720 RPM
