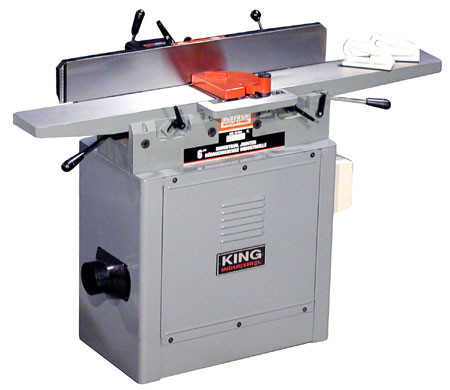

Description:

• Powerful 2 HP motor
• Parallelogram table adjustment system
• 3 knifes cutterhead allows rapid cutting while producing a superior finish
• Precision ground cast-iron tables
• One piece welded cabinet stand has built-in 4" dust chute for dust collector hook-up
• Lever actuated infeed table with lock handle, for quick easy height adjustment
• Graduated scale located on fence
• Magnetic safety switch
• Knives rest on adjustable Jack Screws; lock bar and lock screws keep knives in place
• Sliding bar T-handle controls fence angle adjustment and locks with a single control
• Includes 2 safety push blocks

Specifications:

• CAPACITY: 6"
• CUTTERHEAD SPEED: 5,500 RPM
• DIAMETER OF THE CUTTERHEAD: 3-3/8"
• RABBETING CAPACITY: 1/2" x 6"
• TABLE SIZE: 6" x 55-1/2"
• FENCE SIZE: 36" x 5"
• MOTOR: 15 Amp.
• VOLTAGE: 110V, 1 phase, 60 Hz
• DIMENSIONS (LXWXH) / WEIGHT: 55-1/2" x 24" x 32" / 328 lbs
