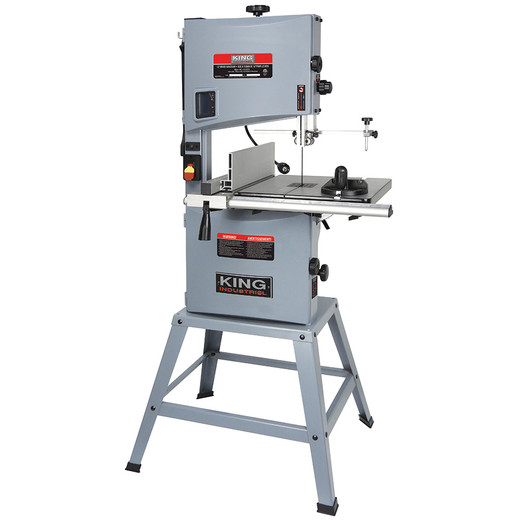

Description:

• Powerful 3/4 HP 120V motor
• Adjustable upper/lower ball bearing blade guide system
• Large 18-7/8" x 15-3/8" tilting table with rack & pinion adjustment
• Flexible LED light increases workpiece visibility
• Belt tension adjustment knob
• Rack & pinion height adjustment system
• Circle cutting guide for diameters up to 23-1/2"
• Dust chute accepts 2", 3" and 4" dust collector hoses
• Comes complete with cast aluminum miter gauge, rip fence with 5" high face, push stick, adjustment wrench and hex. keys

Specifications:

• MODEL: KC-1202FX
• CUTTING CAPACITY FRAME TO BLADE: 12"
• MAXIMUM DEPTH OF CUT: 6-3/4"
• TABLE SIZE: 18-7/8" x 15-3/8"
• TABLE HEIGHT FROM FLOOR38-7/8"
• BLADE SIZE88-3/16" x (1/8" - 3/4") x 0.025"
• MOTOR3/4 HP
• AMPERAGE6.4 Amp.
• VOLTAGE120V, 1 phase, 60 Hz
• SPEEDS2 (1312, 2952) SFPM
• ASSEMBLED DIMENSIONS (LXWXH) / WEIGHT33" x 24" x 6-1/2" / 106 lbs
• PACKAGING DIMENSIONS (LXWXH) / WEIGHT45-5/8" x 21" x 17-3/8" / 110 lbs
• UPC7 72995 01635 8
