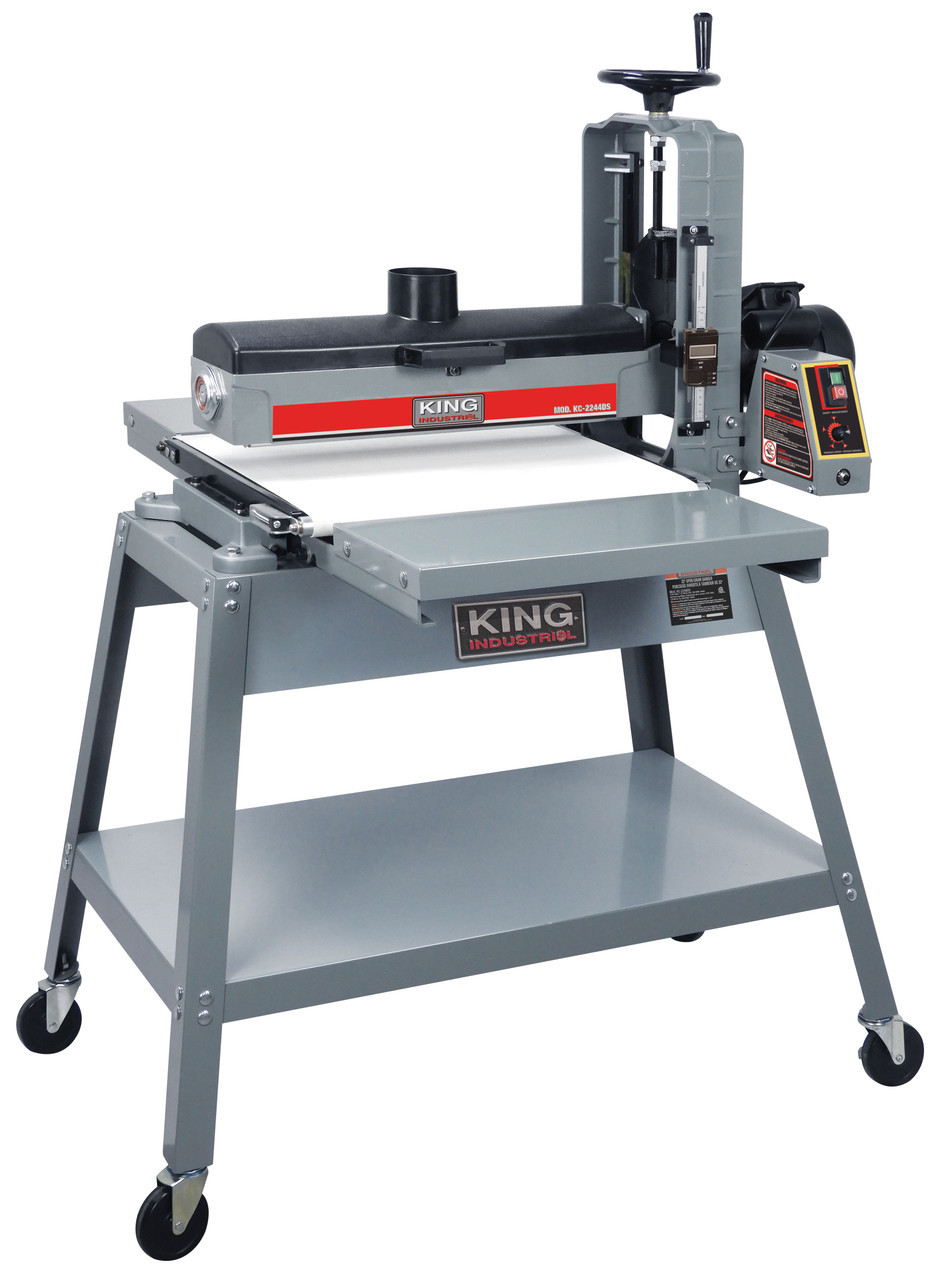

- King Canada KC-2244DS - 22'' Open drum sander
Product Details
- Powerful 1.75 HP Motor
- All ball bearing die cast construction
- Conveyor belt tracking is easy to adjust
- Easy clamping sanding belt loading system
- 4" dust chute and rear hook to support dust collection hose
- Comes with metal stand with 4 caster wheels for mobility
- IMPORTANT! With its open ended design this machine can sand a 44 wide piece in 2 passes
Details:
- DRUM MOTOR: 1.75 HP, 15 Amp.
- BELT FEED MOTOR: 1/8 HP
- MAXIMUM WIDTH OF SANDING: 2 x 22"
- MAXIMUM SANDING CAPACITY PER PASS: 1/64"
- MAXIMUM THICKNESS OF BOARD: 5"
- MAXIMUM THICKNESS OF BOARD: 1/8"
- MINIMUM BOARD LENGTH: 2-1/4"
- BELT: 3" x 127-3/4"
- FEEDING SPEED: 0-31 SIPM
- NUMBER OF SANDING DRUMS: 1
- DRUM SPEED: 1,720 RPM
- VOLTAGE: 110V, 60 Hz, 1 phase
Specifications:
Product Reviews
Write Review
-
Depth...
Posted by Scott Norton on 2023 Mar 25th
The electronic depth guage isn't worth 5 cents, and why wouldn't you put guage that runs off 110V rather than that mickey mouse battery operated one? I haven't been able to use it yet
, I can turn the crank one full turn before the numbers even start to change and when I get to the thickness I want it's out a mile, and I don't see any way to set the manual guage to use it. Scott Norton
